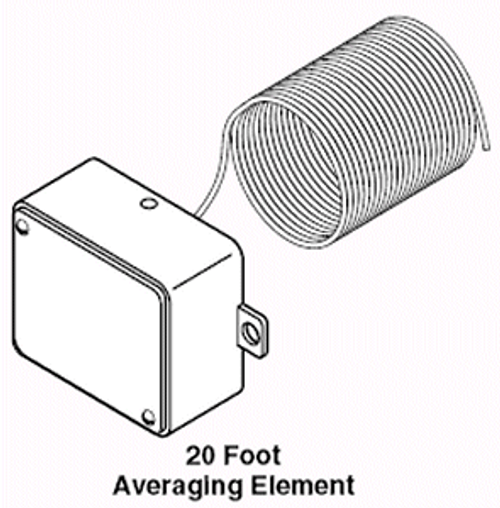

Pneunatic Temperature Transmitters - Duct, Range: 40 to 140 F, Averaging Element, 20 ft. long (6.1 m) |Action: Direct, proportional.|Adjustments: None required, factory calibrated. (Field accessible zero adjustment.)|Supply air pressure: 20 psig ±0.5 psi (138 kPa ±3.4 kPa), clean, dry air, supplied through 1.0 scfh (0.0063" dia.) restrictor or restrictor-tee.|Maximum air pressure: 30 psig (207 kPa).|Output pressure: 3 to 15 psig (21 to 103 kPa).|Air connection: 1/8 in. FNPT.|Maximum case ambient temperature: 140°F (60°C).|Minimum case operating ambient temperature: 40 °F (4.4 °C).|Construction: Liquid-Filled copper sensing element, cast aluminum base, beryllium copper feedback bellows, zinc-plated steel cover.
- Application : Duct Averaging~~
- Brand : Schneider Electric
- By Schneider : Yes
- Display Type : Without Display
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Humidity Calibration Certificate : Humidity: none
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Probe Length : 240.0000000000 in (6096 mm)
- SCIP Number : F565ab1f-02d2-441f-9dff-67e55f1ae1be
- Sensor Signal Category : Transmitter
- Setpoint : No
- Take-back : No
- With Override : No
