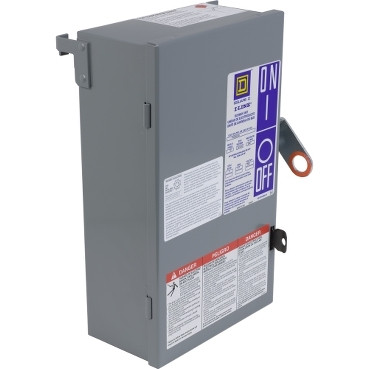

BUSWAY FUSIBLE PIU 60A IP54
- Product or Component Type : Plug-in unit
- Range of Product : I-Line
- Protection Type : Fuse
- Mounting Mode : Plug-in
- Fuse type : H, K, J or R
- [Ue] rated operational voltage : 600 V AC
- Line Rated Current : 60 A
- Number of Phases : 3 phase
- Poles description : 3P
- Interrupt Rating : 10 kA H or K, 200 kA R or J
- Wiring configuration : 3-wire (integral ground bus)
- Depth : 4.65 in (118 mm)
- Height : 14.92 in (379 mm)
- Width : 10.47 in (266 mm)
- Product Certifications : UL listed file E22182, CSA C22.2 No 27
- Standards : UL 857, IEC 60529
- IP Degree of Protection : IP54
- Category : US10PE720177
- Discount Schedule : 0PE7
- Returnability : Yes
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 14.92 in (37.9 cm)
- Package 1 Width : 10.47 in (26.6 cm)
- Package 1 Length : 4.65 in (11.8 cm)
- Package 1 Weight : 18.00 lb(US) (8.165 kg)
- Warranty : 18 months
