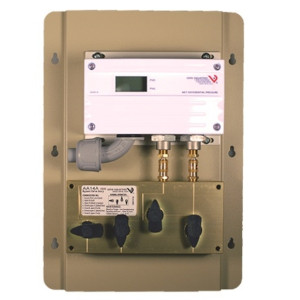

12 to 24 VDC Input 4 to 20 mA Output Wet Media Differential Pressure Transducer with LCD Display, 0 to 250 paig, BypassApplication Zone : Plant RoomApplication : Pump and Compressor Differential Pressure, Chiller Differential Pressure MonitoringBrand : VerisBurst Pressure : 1,250 psi (85 bar)Calibration Certificate : NoDimension Depth : 2.6 In (67 mm)Dimension Height : 12 In (305 mm)Dimension Width : 8.7 In (221 mm)Display Size : 0.7 In x 1.4 In (17 mm x 36 mm)Display Type : LCDElectrical Wiring : 2-wires (loop-powered)Enclosure Material : Powder Coated AluminiumFitting Material : Stainless SteelFitting Size : 1/ 8 In NPTFitting Type : FemaleIP Protection : IP65 (NEMA 4)Measurement Type : Differential PressureMedium : WaterModel : PW2LX05BPMounting : PanelOperating Current : 29 mAOperating Humidity : 0 - 90% RH, non-condensingOperating Temperature : -4 - 130 °F (-10 - 55 °C)Output Specifications : 4 - 20 mAOutputs : Analog outputPressure Measurement Accuracy : Range A, B and C: ±1% of F.S. Range D: ±2% of F.S.Pressure Measurement Range : 0 - 25 psi (0 - 1.7 bar), 0 - 50 psi (0 - 3.5 bar), 0 - 100 psi (0 - 7 bar), 0 - 250 psi (0 - 17 bar)Product Certification : CEProduct Type : SensorRange : PW2Standards EMC : EN 61000-6-1Supply Voltage DC Range : 12 - 24 VDC
Product pictures shown represent the general type of component listed.The product you select might not exactly match the photo.
