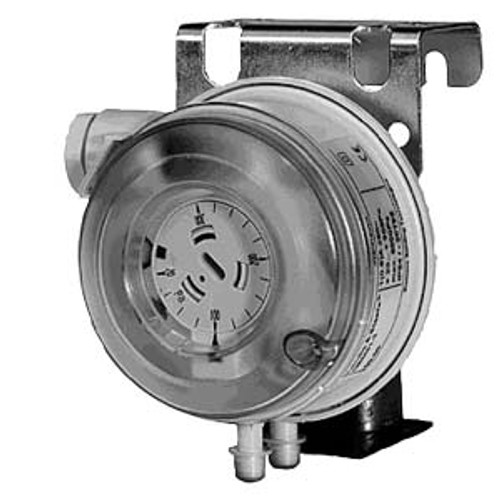

QBM81-3 - Differential Pressure Switch, 0.8 - 8.0 Inch WC, Adjustable, Metric
- Digital outputs : CO: 1 , Potential-free
- Measuring range, pressure : 20…300 Pa
- Permissible operating pressure : 7.5 kPa
- Ambient temperature, operation : -20…85 °C
- Mounting position : Diaphragm vertical, pressure connection pointing downward
- Digital output, switching voltage : AC 24…250 V; 24 V
- Digital output, switching current : 0.01…5 (3)A
- Pressure connection : Connecting branchØ 6.2 mm
- Degree of protection : IP54
- Dimensions (Ø x L) : 81 x 90 mm
