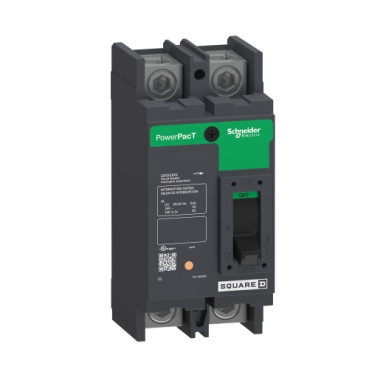

PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has lugs on both the line and load sides. This PowerPacT Q, 200A, 2 pole, circuit breaker has an interrupting rating of 25kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
- Range : PowerPact
- Product name : PowerPact Q
- Product or Component Type : Circuit breaker
- Device Application : Distribution
- Line Rated Current : 200 A
- Number of Poles : 2P
- control type : Operating handle
- Breaking capacity code : D
- Breaking capacity : 25 kA 120/208 V AC 50/60 Hz UL, 25 kA 240 V AC 50/60 Hz UL
- [Ue] rated operational voltage : 240 V AC 50/60 Hz UL
- Network Frequency : 50/60 Hz
- [Uimp] rated impulse withstand voltage : 8 kV UL
- Trip unit technology : Thermal-magnetic
- Magnetic tripping current : 2400 A
- Magnetic hold current : 1200 A
- Continuous current rating : 80 %
- utilisation category : Category A
- Mechanical durability : 1000 cycles loaded, 5000 cycles no load
- Local signalling : 1 trip indicator green)
- Mounting mode : Unit mount lug)
- Mounting Support : Lug
- Electrical connection : Lugs, load, Lugs, line
- Tightening torque : 247.82 lbf.in (28 N.m) 0.04…0.23 in² (25…150 mm²) (AWG 4...300 kcmil)
- Power wire stripping length : 0.87 in (22 mm)
- Height : 6.47 in (164.34 mm)
- Width : 3 in (76.20 mm)
- Depth : 3.93 in (99.82 mm)
- circuit breaker application : HACR rated
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
- Product certifications : UL, CSA, NOM
- Ambient Air Temperature for Operation : 104…158 °F (40…70 °C)
- Category : US1DE2A00005
- Discount Schedule : DE2A
- GTIN : 785901417804
- Returnability : Yes
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 4.90 in (12.446 cm)
- Package 1 Width : 6.20 in (15.748 cm)
- Package 1 Length : 9.80 in (24.892 cm)
- Package 1 Weight : 3.45 lb(US) (1.565 kg)
- Unit Type of Package 2 : PAL
- Number of Units in Package 2 : 729
- Package 2 Height : 40.00 in (101.6 cm)
- Package 2 Width : 40.00 in (101.6 cm)
- Package 2 Length : 48.00 in (121.92 cm)
- Package 2 Weight : 2574.00 lb(US) (1167.546 kg)
- Warranty : 18 months
