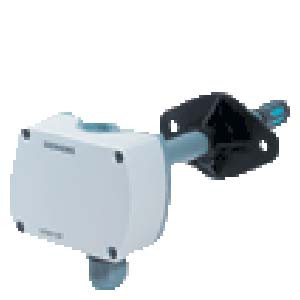

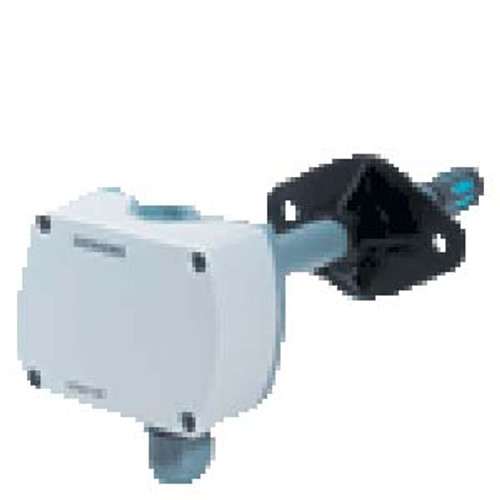

QFM3160D - Duct Humidity & Temperature Sensor, 0-10V, 2% Accuracy, with Display
- Immersion length : 90…206 mm
- Measurement range humidity : 0…100 % r.h.
- Measuring range, temperature : 0…50 °C, -35…35 °C, -40…70 °C
- Sensing element, temperature : DC 0...10 V
- Signal output humidity : DC 0...10 V, DC 0…5 V, DC 4...20 mA
- Signal output temperature : DC 0...10 V, DC 0…5 V, DC 4...20 mA
- Operating voltage : 24 VAC, 13.5…35 VDC
- Analog outputs : 0-10 V
- Measuring range : Temperature: -40 to 158°F; Humidity: 0 to 100% RH
- Measurement accuracy : At 15…35 °C: ±0.6 K, At 40…70 °C: ±0.8 K23 % r.h., 0…100 % r.h.: ±2 % r.h.±2 % r.h.
- Display : LCD
- Dimensions (W x H x D) : 80 x 88 x 39 (274) mm
