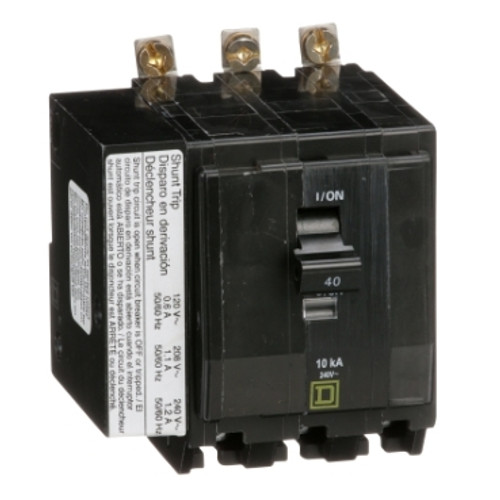

QOB340

[Ue] rated operational voltage :

120 V AC~~

[Ue] rated operational voltage :

120/240 V AC

[Ue] rated operational voltage :

240 V AC

AWG Gauge :

AWG 8...AWG 2 copper or aluminium

Brand :

Square D

breaking capacity :

10 kA 120 V AC

breaking capacity :

10 kA 120/240 V AC

breaking capacity :

10 kA 240 V AC

By Schneider :

Yes

Carbon footprint (kg CO2 eq, Total Life cycle) :

20

circuit breaker application :

HACR rated

circuit breaker type :

Standard

Circularity Profile :

No need of specific recycling operations

Depth :

2.9 in (74 mm)

Electrical Connection :

Box lugs

Final Result for Connectable :

Not connectable

Final Result for Flywheel performance tracking :

Non Flywheel

Global Keywords :

10 kA

Global Keywords :

120 / 240 VAC

Global Keywords :

3P

Global Keywords :

40 A

Global Keywords :

Bolted

Global Keywords :

CB

Global Keywords :

Miniature

Global warming ; Total life cycle? :

20 kg CO2 eq.

Halogen content performance :

Halogen free product

Height :

3.1 in (79 mm)

Indivisible Sale Qty :

1

Line Rated Current :

40 A

Manufacturer :

Schneider Electric

Mounting Mode :

Bolt-on

Net Weight :

0.800 lb(US) (0.363 kg)

number of spaces required :

3

Number of Units in Package 2 :

3

Number of Units in Package 3 :

36

Number of Units in Package 4 :

864

Package 2 GTIN :

30785901417140

Package 2 Height :

3.70 in (9.398 cm)

Package 2 Length :

7.10 in (18.034 cm)

Package 2 Weight :

2.599 lb(US) (1.179 kg)

Package 2 width :

3.50 in (8.89 cm)

Package 3 GTIN :

50785901417144

Package 3 Height :

3.70 in (9.398 cm)

Package 3 Length :

21.60 in (54.864 cm)

Package 3 Weight :

31.90 lb(US) (14.47 kg)

Package 3 width :

14.40 in (36.576 cm)

Package 4 Height :

40.00 in (101.6 cm)

Package 4 Length :

48.00 in (121.92 cm)

Package 4 Weight :

725.760 lb(US) (329.199 kg)

Package 4 Width :

40.00 in (101.6 cm)

Packaging made with recycled cardboard :

No

Packaging without single use plastic :

Yes

Product Certifications :

CSA

Product Certifications :

UL Listed

Product Or Component Type :

Miniature circuit-breaker

REACh free of SVHC :

Yes

SCIP Number :

Af42fb01-813d-40c0-ae28-b8b3299dbc99

Take-back :

No

Temperature Ambient Operating Range :

104 °F (40 °C)

Tightening Torque :

44.3 lbf.in (5 N.m)

Toxic heavy metal free :

Yes

Type Of Network :

3P

Unit Type of Package 2 :

BB1

Unit Type of Package 3 :

CAR

Unit Type of Package 4 :

PAL

UNSPSC Classification v19 :

39121603

UNSPSC Classification v23 :

39121603

Volume of Package 2 :

1506.70859948 cm3

Volume of Package 3 :

18859.019830272 cm3

Warranty :

18 months

Width :

2.2 in (57 mm)
