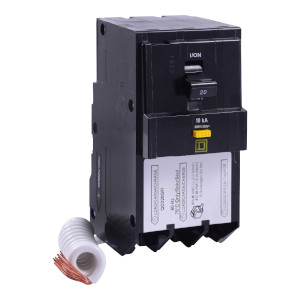

MINIATURE CIRCUIT BREAKER 240V 20A
- [Ue] rated operational voltage : 120 V AC~~
- [Ue] rated operational voltage : 120/240 V AC
- [Ue] rated operational voltage : 240 V AC
- AWG Gauge : AWG 14...AWG 8 copper or aluminium
- Brand : Square D
- breaking capacity : 10 kA 120 V AC
- breaking capacity : 10 kA 120/240 V AC
- breaking capacity : 10 kA 240 V AC
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 20
- circuit breaker application : HACR rated
- circuit breaker type : Standard
- Circularity Profile : No need of specific recycling operations
- Depth : 2.9 in (74 mm)
- Electrical Connection : Pressure plate
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : 10 kA
- Global Keywords : 120 / 240 VAC
- Global Keywords : 20 A
- Global Keywords : 3P
- Global Keywords : CB
- Global Keywords : Miniature
- Global Keywords : Plugin
- Global warming ; Total life cycle? : 20 kg CO2 eq.
- Halogen content performance : Halogen free product
- Height : 3.0 in (76 mm)
- Indivisible Sale Qty : 1
- Line Rated Current : 20 A
- Manufacturer : Schneider Electric
- Mounting Mode : Plug-in
- Net Weight : 0.851 lb(US) (0.386 kg)
- number of spaces required : 3
- Number of Units in Package 2 : 3
- Number of Units in Package 3 : 36
- Package 2 Height : 3.80 in (9.652 cm)
- Package 2 Length : 7.20 in (18.288 cm)
- Package 2 Weight : 2.500 lb(US) (1.134 kg)
- Package 2 width : 2.20 in (5.588 cm)
- Package 3 GTIN : 50785901400689
- Package 3 Height : 3.80 in (9.652 cm)
- Package 3 Length : 21.60 in (54.864 cm)
- Package 3 Weight : 3.060 lb(US) (1.388 kg)
- Package 3 width : 14.40 in (36.576 cm)
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : Yes
- Product Certifications : CSA
- Product Certifications : UL Listed
- Product Or Component Type : Miniature circuit-breaker
- REACh free of SVHC : Yes
- SCIP Number : Af42fb01-813d-40c0-ae28-b8b3299dbc99
- Take-back : No
- Temperature Ambient Operating Range : 104 °F (40 °C)
- Tightening Torque : 35.4 lbf.in (4 N.m)
- Toxic heavy metal free : Yes
- Type Of Network : 3P
- Unit Type of Package 2 : BB1
- Unit Type of Package 3 : CAR
- UNSPSC Classification v19 : 39121603
- UNSPSC Classification v23 : 39121603
- Volume of Package 2 : 986.37 cm3
- Volume of Package 3 : 19368.723 cm3
- Warranty : 18 months
- Width : 2.2 in (57 mm)
