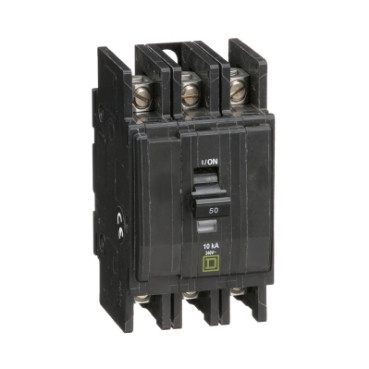

QO™ and QOU Miniature Circuit Breakers, QOU350, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers provide a means to manually open a circuit.
- Product or Component Type : Miniature circuit-breaker
- Range of Product : QOU
- Circuit breaker type : Standard
- circuit breaker application : HACR rated
- Line Rated Current : 50 A
- Electrical connection : Slotted box lugs, line side, Slotted box lugs, load side
- [Ue] rated operational voltage : 120/240 V AC, 240 V AC, 120 V AC, 48 V DC
- Mounting Mode : Unit mount
- AWG gauge : AWG 14...AWG 2 aluminium/copper
- Height : 4.05 in (102.87 mm)
- Width : 2.25 in (57.15 mm)
- Depth : 2.95 in (74.93 mm)
- Tightening torque : 45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
- Product Certifications : CSA, IEC, UL Listed
- Category : US10DE200900
- Discount Schedule : 0DE2
- GTIN : 785901418986
- Returnability : Yes
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 3.50 in (8.89 cm)
- Package 1 Width : 4.80 in (12.192 cm)
- Package 1 Length : 2.60 in (6.604 cm)
- Package 1 Weight : 18.40 oz (521.631 g)
- Unit Type of Package 2 : CAR
- Number of Units in Package 2 : 5
- Package 2 Height : 3.50 in (8.89 cm)
- Package 2 Width : 13.50 in (34.29 cm)
- Package 2 Length : 20.50 in (52.07 cm)
- Package 2 Weight : 23.20 lb(US) (10.523 kg)
- Unit Type of Package 3 : PAL
- Number of Units in Package 3 : 840
- Package 3 Height : 40.00 in (101.6 cm)
- Package 3 Width : 40.00 in (101.6 cm)
- Package 3 Length : 48.00 in (121.92 cm)
- Package 3 Weight : 966.00 lb(US) (438.17 kg)
- Warranty : 18 months
