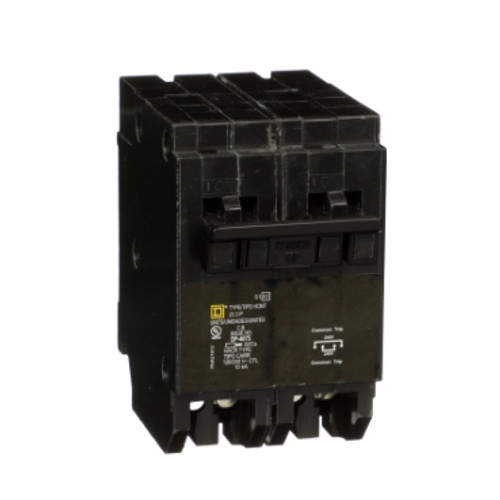

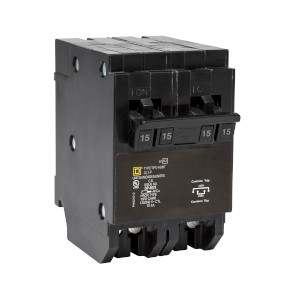

Quad tandem mini circuit breaker| Product: Miniature circuit-breaker Range: Homeline Current Rating: 15 A, 30A Certifications: UL listed Voltage Rating: 120/240 V AC Mounting Type: Plug-in Number of Poles: 2P Short Circuit Current Rating: 10 kA Number of Spaces: 2.0 Circuit Breaker Type: Quad tandem Ratings: HACR rated Electrical Connection: Box lugs Wire Size: AWG 14...AWG 8 Aluminium / copper)1 Height: 3.13 in (79.50 mm) Width: 1.97 in (50.04 mm) Depth: 3.23 in (82.04 mm)
- [Ue] rated operational voltage : 120/240 V AC~~
- AWG Gauge : 1 x AWG 14...AWG 8 ( aluminium/copper )
- Brand : Square D
- By Schneider : Yes
- circuit breaker application : HACR rated
- circuit breaker type : Quad tandem
- Circularity Profile : No need of specific recycling operations
- Depth : 3.23 in (82.04 mm)
- Electrical Connection : Box lugs
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : 15A
- Global Keywords : 30A
- Global Keywords : Homeline
- Global Keywords : Miniature circuit breaker
- Global Keywords : Plug in mount
- Global Keywords : Quad
- Global Keywords : Tandem
- Height : 3.13 in (79.50 mm)
- Line Rated Current : 15 A
- Line Rated Current : 30 A
- Manufacturer : Schneider Electric
- Mounting Mode : Plug-in
- number of spaces required : 2.0
- Number of Units in Package 2 : 5
- Number of Units in Package 3 : 50
- Package 2 Height : 3.40 in (8.636 cm)
- Package 2 Length : 10.10 in (25.654 cm)
- Package 2 Weight : 4.471 lb(US) (2.028 kg)
- Package 2 width : 3.60 in (9.144 cm)
- Package 3 Height : 10.70 in (27.178 cm)
- Package 3 Length : 17.00 in (43.180 cm)
- Package 3 Weight : 45.049 lb(US) (20.434 kg)
- Package 3 width : 7.90 in (20.066 cm)
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : Yes
- Product Certifications : UL Listed
- Product Or Component Type : Miniature circuit-breaker
- REACh free of SVHC : Yes
- short-circuit current : 10 kA
- Take-back : No
- Temperature Ambient Operating Range : 104 °F (40 °C)
- Toxic heavy metal free : Yes
- Type Of Network : 2P
- Unit Type of Package 2 : BB1
- Unit Type of Package 3 : CAR
- UNSPSC Classification v19 : 39121603
- UNSPSC Classification v23 : 39121603
- Volume of Package 2 : 2025.834 cm3
- Volume of Package 3 : 23548.375 cm3
- Width : 1.97 in (50.04 mm)
