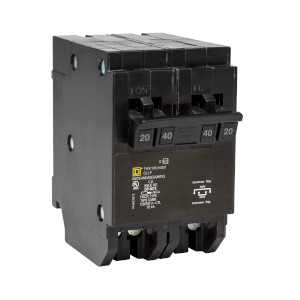

Quad tandem mini circuit breaker, Homeline, 1 x 2 pole at 20A, 1 x 2 pole at 40A, 120/240 VAC, 10 kA AIR, plug in mount
- [Ue] rated operational voltage : 120/240 V AC~~
- AWG Gauge : 1 x AWG 14...AWG 6 ( aluminium/copper )
- AWG Gauge : 1 x AWG 14...AWG 8 ( aluminium/copper )
- Brand : Square D
- By Schneider : Yes
- circuit breaker application : HACR rated
- circuit breaker type : Quad tandem
- Circularity Profile : No need of specific recycling operations
- Depth : 3.29 in (83.57 mm)
- Electrical Connection : Box lugs
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : 20 A
- Global Keywords : 20 Amp
- Global Keywords : 240 VAC
- Global Keywords : 240V AC
- Global Keywords : 2P
- Global Keywords : 2-pole
- Global Keywords : 40 A
- Global Keywords : 40 Amp
- Global Keywords : CB
- Global Keywords : Home line
- Global Keywords : Home-line
- Global Keywords : MWBC
- Global Keywords : Plug-in
- Global Keywords : Quadplex CB
- Global Keywords : Underwriter
- Height : 3.13 in (79.50 mm)
- Line Rated Current : 20 A
- Line Rated Current : 40 A
- Manufacturer : Schneider Electric
- Mounting Mode : Plug-in
- number of spaces required : 2.0
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : Yes
- Product Certifications : UL Listed
- Product Or Component Type : Miniature circuit-breaker
- REACh free of SVHC : Yes
- short-circuit current : 10 kA
- Take-back : No
- Temperature Ambient Operating Range : 104 °F (40 °C)
- Toxic heavy metal free : Yes
- Type Of Network : 2P
- UNSPSC Classification v19 : 39121603
- UNSPSC Classification v23 : 39121603
- Width : 1.97 in (50.04 mm)
