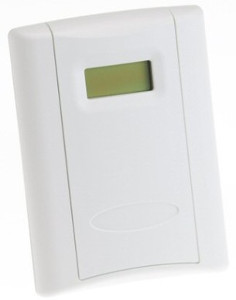

NLO-ROOM H/T TRANS
- Application : Wall
- Application Zone : Living Space
- Color : Cloud White
- Dimension Depth : 30 mm (1.2 ")
- Dimension Height : 122 mm (4.8 ")
- Dimension Width : 89 mm (3.5 ")
- Display Size : 30.5 mm x 14 mm (1.2 " x 0.6 ")
- Display Type : LCD
- Electrical Wiring Size : 24-18 AWG
- Enclosure Material : ABS plastic
- Feature Level : Deluxe
- Humidity Measurement Accuracy : +/-2%
- Humidity Measurement Drift : +/-1% at 20 C (68 F) annually for 2 years
- Humidity Measurement Range : 0 to 100% RH, non-condensing
- Humidity Measurement Resolution : 0.1% RH
- Humidity Sensor Type : Thin film capacitive, replaceable
- Measurement Type : Humidity, Temperature
- Mounting : Wall
- Operating Humidity : 0 to 100% RH, non-condensing (will recover from saturation)
- Operating Temperature : 10 to 35 C (50 to 95 F)
- Output Specifications : 0-10 VDC, 0-5 VDC, 4-20 mA
- Override : Yes
- Product Certifications : CE
- Product Type : Sensor
- Range : HW
- Setpoint : Yes
- Supply Voltage AC Nominal : 24 VAC
- Supply Voltage DC Range : 12-30 VDC
- Temperature Measurement Accuracy : +/-0.2 C (+/-0.4 F)
- Temperature Measurement Range : 0 to 70 C (32 to 158 F)
- Temperature Sensor Type : 10k Ohm Type 3 Thermistor
- Warranty : 5 years (1 year on replaceable RH element)
