zoom

Product pictures shown represent the general type of component listed.The product you select might not exactly match the photo.

S55624-H134

$3,557.82
(No reviews yet) Write a Review
SKU:
S55624-H134
Adding to cart… The item has been added

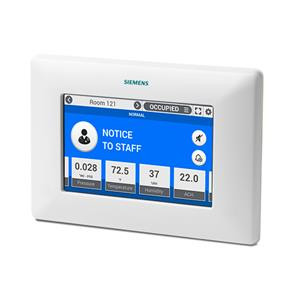

RPM.125-SD - Siemens Room Condition Monitor (RCM) with Pressure Sensor +/- 0.50" WC (125 Pa)
Connection cable :
Pluggable screw terminals for 2 or 3-conductor stranded unshielded twisted pair, 16-24 AWG (14-1.5 mm2) Slotted screws, Size 1, tightening torque 0.6 Nm (0.44 lb-ft)
Operating voltage :
24 VAC
Communication :
BACnet
Display :
7” Projected Capacitive (PCAP) multitouch, 800 x 480 pixel s
Material, housing :
Fire-retardant plastic UL94 V-0
Ambient temperature, operation :
32 to 120 °F, 0 to 50 °C
Ambient humidity, operation :
5 to 95% rh (non-condensing)
Mounting position :
Triple-gang, double deep electrical box. RACO 697, Appleton M3-350, or equivalent
Pressure connection :
Barbed fittings for 3/16" tubing
Measuring range :
+/- 0.50" WC, 125 Pa
Measurement accuracy :
0.25% Full Scale
Degree of protection :
IP55
Dimensions (W x H x D) :
9.25 W x 6.3 H x 0.72 D in
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5cA6V11526233_Room%2520Condition%2520Monitor%2520RPM%2520Series_en.pdf&EXT=.pdf&SID=A6V11526233&KEY=3&DTP=Data+Sheet+for+Product
