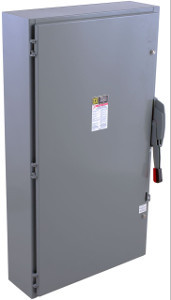

Safety switch, heavy duty, fusible, 600A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 1

[Ue] rated operational voltage :

600 V AC/DC

Application :

Heavy application

AWG Gauge :

AWG 3/0...500 kcmil copper or aluminium

Brand :

Square D

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

2048

Circularity Profile :

No need of specific recycling operations

Depth :

10.13 in (257.30 mm)

Device Composition :

None

Device Mounting :

Surface

disconnector device type :

Fusible disconnect

Electrical Connection :

Lugs

Final Result for Flywheel performance tracking :

Non Flywheel

fuse type :

H or K

fuse type :

R or J

Global Keywords :

3 poles

Global Keywords :

3P

Global Keywords :

3-pole

Global Keywords :

500 hp

Global Keywords :

600 A

Global Keywords :

600 Amp

Global Keywords :

600 VAC

Global Keywords :

600V AC

Global Keywords :

Commercial

Global Keywords :

Hdss

Global Keywords :

Industrial

Global Keywords :

Three-pole

Global warming ; Total life cycle? :

2 048 kg CO2 eq.

Halogen content performance :

Halogen free plastic parts product

Height :

50.25 in (1276.35 mm)

Line Rated Current :

600 A

Manufacturer :

Square D

Motor power hp :

150 hp at 480 V AC 50-60 Hz for 3 phase motors

Motor power hp :

200 hp at 600 V AC 50-60 Hz for 3 phase motors

Motor power hp :

400 hp at 480 V AC 50-60 Hz for 3 phase motors

Motor power hp :

50 hp at 250 V DC

Motor power hp :

50 hp at 600 V DC

Motor power hp :

500 hp at 600 V AC 50-60 Hz for 3 phase motors

NEMA degree of protection :

NEMA 1 steel

Net Weight :

179.02 lb(US) (81.2 kg)

number of poles :

3

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

Product Certifications :

UL listed file E2875

Product Or Component Type :

Single Throw Safety Switch

PVC free :

Yes

series name :

Heavy duty

short-circuit current :

10 kA for H or K

short-circuit current :

200 kA for R or J

Take-back :

No

Tightening Torque :

375 lbf.in (42.4 N.m) (AWG 3/0...500 kcmil)

UNSPSC Classification v19 :

39122205

UNSPSC Classification v23 :

39122205

Warranty :

18 months

Width :

27.63 in (701.80 mm)

wiring configuration :

3-wire

PDF :

https://iportal2.schneider-electric.com/Contents/docs/H366_DATA%20SHEET.PDF
