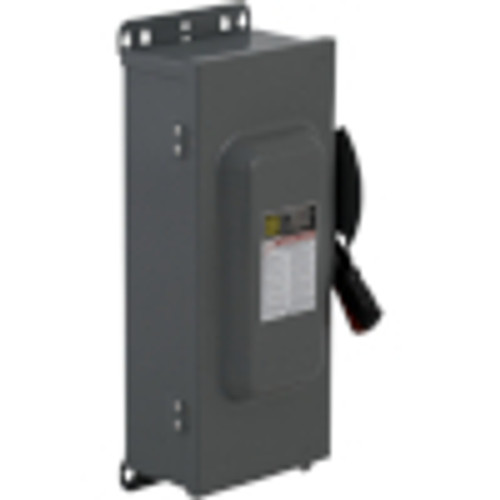

Safety switch, heavy duty, non fusible, 100A, 4 pole, 75hp, 600VAC/DC, NEMA 12

[Ue] rated operational voltage :

600 V AC/DC

Application :

Heavy application

AWG Gauge :

AWG 12...AWG 1/0 aluminium

AWG Gauge :

AWG 14...AWG 1/0 copper

Brand :

Square D

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

181

Circularity Profile :

No need of specific recycling operations

Depth :

6.8 in (172.7 mm)

Device Composition :

None

Device Mounting :

Surface

disconnector device type :

Non-fusible disconnect

Electrical Connection :

Lugs

Final Result for Flywheel performance tracking :

Non Flywheel

Global Keywords :

100 a

Global Keywords :

100 amp

Global Keywords :

4 poles

Global Keywords :

4p

Global Keywords :

4-pole

Global Keywords :

600 VAC

Global Keywords :

600V AC

Global Keywords :

75 hp

Global Keywords :

Commercial

Global Keywords :

Four-pole

Global Keywords :

Hdss

Global Keywords :

Industrial

Global Keywords :

Nonfusible

Global Keywords :

Non-fusible

Global warming ; Total life cycle? :

181 kg CO2 eq.

Height :

20.5 in (520.7 mm)

Line Rated Current :

100 A

Manufacturer :

Square D

Motor power hp :

20 hp at 250 V DC

Motor power hp :

30 hp at 240 V AC 50-60 Hz for 2 phases motors

Motor power hp :

30 hp at 600 V DC

Motor power hp :

40 hp at 240 V AC 50-60 Hz for 3 phase motors

Motor power hp :

50 hp at 480 V AC 50-60 Hz for 2 phases motors

Motor power hp :

50 hp at 600 V AC 50-60 Hz for 2 phases motors

Motor power hp :

75 hp at 480 V AC 50-60 Hz for 3 phase motors

Motor power hp :

75 hp at 600 V AC 50-60 Hz for 3 phase motors

NEMA degree of protection :

NEMA 3R/12 galvannealed steel

Net Weight :

28.7 lb(US) (13 kg)

number of poles :

4

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

Yes

Product Certifications :

UL listed file E2875

Product Or Component Type :

Single Throw Safety Switch

PVC free :

Yes

series name :

Heavy duty

Sustainable packaging :

Yes

Take-back :

No

Tightening Torque :

35 lbf.in (4.0 N.m) 0.003…0.008 in² (2.06…5.261 mm²) (AWG 14...AWG 10)

Tightening Torque :

40 lbf.in (4.5 N.m) 0.013 in² (8.367 mm²) (AWG 8)

Tightening Torque :

45 lbf.in (5.08 N.m) (AWG 6...AWG 4)

Tightening Torque :

50 lbf.in (5.6 N.m) (AWG 1...AWG 3/0)

UNSPSC Classification v19 :

39122218

UNSPSC Classification v23 :

39122218

Warranty :

18 months

Width :

16.13 in (409.70 mm)

wiring configuration :

4-wire

PDF :

https://iportal2.schneider-electric.com/Contents/docs/HU463AWK_DATA%20SHEET.PDF||~~PDF
