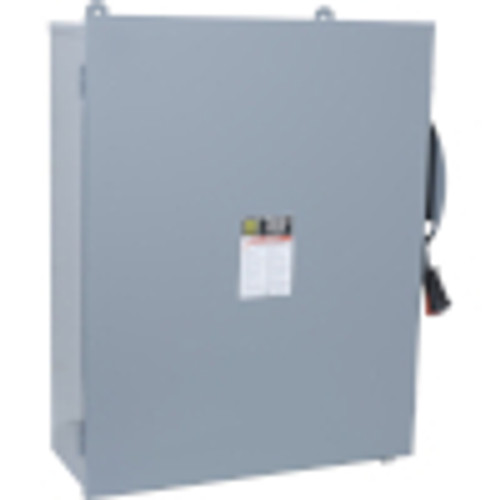

Safety switch, heavy duty, non fusible, 200A, 4 poles, 150hp, 600VAC/DC, NEMA 12
- [Ue] rated operational voltage : 600 V AC/DC
- Application : Heavy application
- AWG Gauge : AWG 6...250 kcmil copper or aluminium
- Brand : Square D
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 259
- Circularity Profile : No need of specific recycling operations
- Depth : 8.75 in (222.25 mm)
- Device Composition : None
- Device Mounting : Surface
- disconnector device type : Non-fusible disconnect
- Electrical Connection : Lugs
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : 150 hp
- Global Keywords : 200 A
- Global Keywords : 200 amp
- Global Keywords : 4 poles
- Global Keywords : 4p
- Global Keywords : 4-pole
- Global Keywords : 600 VAC
- Global Keywords : 600V AC
- Global Keywords : Commercial
- Global Keywords : Four-pole
- Global Keywords : Hdss
- Global Keywords : Industrial
- Global Keywords : Nonfusible
- Global Keywords : Non-fusible
- Global warming ; Total life cycle? : 259 kg CO2 eq.
- Height : 29 in (736.6 mm)
- Line Rated Current : 200 A
- Manufacturer : Square D
- Motor power hp : 125 hp at 480 V AC 50-60 Hz for 3 phase motors
- Motor power hp : 150 hp at 600 V AC 50-60 Hz for 3 phase motors
- Motor power hp : 40 hp at 250 V DC
- Motor power hp : 50 hp at 240 V AC 50-60 Hz for 2 phases motors
- Motor power hp : 50 hp at 480 V AC 50-60 Hz for 2 phases motors
- Motor power hp : 50 hp at 600 V AC 50-60 Hz for 2 phases motors
- Motor power hp : 50 hp at 600 V DC
- Motor power hp : 60 hp at 240 V AC 50-60 Hz for 3 phase motors
- NEMA degree of protection : NEMA 3R/12 galvannealed steel
- Net Weight : 80.49 lb(US) (36.51 kg)
- number of poles : 4
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : Yes
- Product Certifications : UL listed file E2875
- Product Or Component Type : Single Throw Safety Switch
- PVC free : Yes
- REACh free of SVHC : Yes
- series name : Heavy duty
- Sustainable packaging : Yes
- Take-back : No
- Tightening Torque : 275 lbf.in (31.07 N.m) 0.02…0.2 in² (13.3…127 mm²) (AWG 6...250 kcmil)
- Toxic heavy metal free : Yes
- UNSPSC Classification v19 : 39122218
- UNSPSC Classification v23 : 39122218
- Warranty : 18 months
- Width : 18.63 in (473.20 mm)
- wiring configuration : 4-wire
