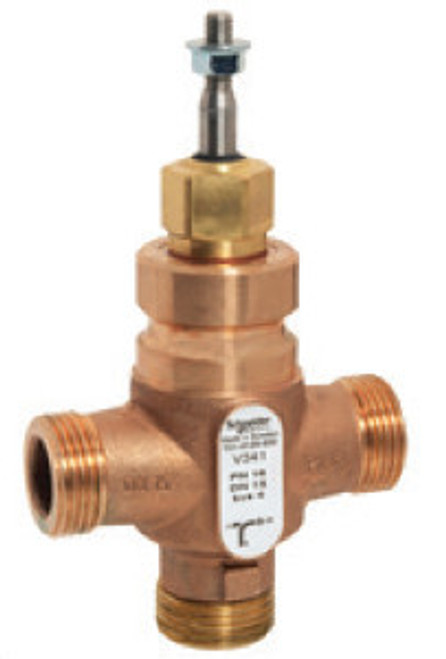

Valve Body (7314145000): |Body Size: 40 mm |Configuration: 3-Way |Type: Globe |Connection: G external thread |Stem Flow Action: Stem up closes A and opens B to AB |Material Trim: Stainless Steel |Flow Coefficient: 25 kvs |Control Media: Glycol 25 to 50%, Water |Product Line: Schneider Electric |Product Range: Venta |Product Series: V341 Product Alert: Not for use with steam
- Body Size : 40 mm (1-1/2 in)~~
- Brand : Schneider Electric
- By Schneider : Yes
- Circularity Profile : No need of specific recycling operations
- Configuration : 3-Way
- Connection Size : G 2-1/4B
- Connection Type : G External
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Flow Characteristic : Equal Percentage
- Flow Coefficient : 25 kvs
- Flow Coefficient : 28.91 cv
- Global Keywords : 3-way
- Global Keywords : Control
- Global Keywords : Crown
- Global Keywords : Diverting
- Global Keywords : Globe
- Global Keywords : Linear
- Global Keywords : Mixing
- Global Keywords : Plug
- Global Keywords : Thread
- Global Keywords : Threaded
- Global Keywords : V341
- Global Keywords : Venta
- Indivisible Sale Qty : 1
- Manufacturer : Schneider Electric
- Material Body : Bronze Rg5
- Material Plug : Stainless Steel AISI 303
- Material Stem : Stainless Steel AISI 303
- Material Stem Seal : EPDM
- Material Trim : Stainless Steel
- Media Compatibility : Glycol 25 %
- Media Compatibility : Glycol 30 %
- Media Compatibility : Glycol 50 %
- Media Compatibility : Water
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Packing Material : EPDM
- Pipe Size : 40 mm
- Pressure Class : PN16
- Pressure Fluid Max Delta P Normal Life : 87 psi (599.8 kPa)
- Product Alert : Not for use with steam.
- Product Or Component Type : Valve
- Rangeability : Greater than 100:1
- Seat Leakage : Port A: Less than 0.02 % of kvs (Ports A-AB)
- Seat Leakage : Port A: Less than 0.05 % of kvs (Ports B-AB)
- Seat Material : Port A: stainless steel AISI 303
- Seat Material : Port B: stainless steel AISI 303
- Seating Seal Material : Port A:metal to metal
- Selection Tools : Valve Selection Tool
- Stem Flow Action : Stem Up Closes A and Opens B to AB
- Stem Movement : Linear
- Stroke Distance : 20 mm
- Take-back : No
- Temperature Range Fluid : -4…302 °F (-20…150 °C)
- Valve Model : V341/40/25
- Valve Product Range : Venta
- Valve Product Series : V341
- Valve Type : Globe
