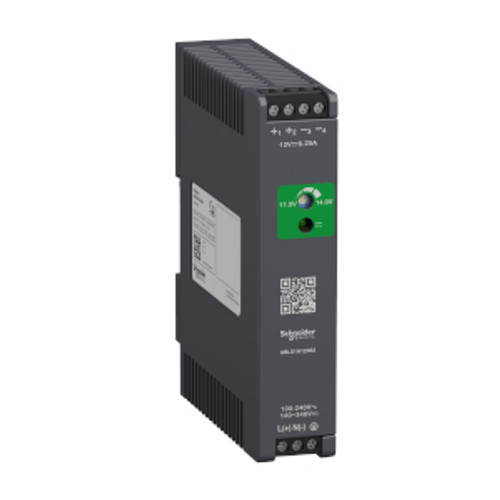

Schneider Electric ABLS1A12062 Regulated Power Supply, 100 to 240V AC, 12V, 6.2A, single phase, Optimized

Ambient Air Temperature For Operation :

104…158 °F (40…70 °C) with current derating of 1.67 % per °C mounting position A 115 V AC~~

Ambient Air Temperature For Operation :

122…158 °F (50…70 °C) with current derating of 2.5 % per °C mounting position A 230 V AC

Ambient Air Temperature For Operation :

14…104 °F (-10…40 °C) without derating mounting position A 115 V AC

Ambient Air Temperature For Operation :

14…122 °F (-10…50 °C) without derating mounting position A 230 V AC

Ambient Air Temperature For Operation :

-4…14 °F (-20…-10 °C) with current derating of 1 % per °C mounting position A

Brand :

Schneider Electric

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

691

Connections - Terminals :

Screw connection 0.5...2.5 mm², AWG 20...AWG 14) output

Connections - Terminals :

Screw connection 0.75...2.5 mm², AWG 18...AWG 14) input

Depth :

4.02 in (102 mm)

dielectric strength :

3000 V AC with input to output

earthing system :

IT

earthing system :

TN

earthing system :

TT

efficiency :

87 % 230 V AC

Efficiency at full load :

120...375 V DC without temperature derating

Efficiency at full load :

85...264 V AC without temperature derating

electrical shock protection class :

Class I

Electromagnetic Compatibility :

conforming to EN 55016-1-2

Electromagnetic Compatibility :

conforming to EN 55016-2-1

Electromagnetic Compatibility :

Disturbing field emission conforming to EN 55016-2-3

Electromagnetic Compatibility :

Immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6

Electromagnetic Compatibility :

Immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3

Electromagnetic Compatibility :

Immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3

Electromagnetic Compatibility :

Immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3

Electromagnetic Compatibility :

Immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2

Electromagnetic Compatibility :

Immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2

Electromagnetic Compatibility :

Immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4

Electromagnetic Compatibility :

Immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8

Electromagnetic Compatibility :

Immunity to voltage dips conforming to IEC 61000-4-11

Electromagnetic Compatibility :

Limits for harmonic current emissions conforming to IEC 61000-3-2

Electromagnetic Compatibility :

Surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5

Electromagnetic Compatibility :

Surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5

electromagnetic emission :

Conducted emissions IEC 61000-6-3

electromagnetic emission :

Radiated emissions IEC 61000-6-4

Enclosure Material :

Plastic

Final Result for Flywheel performance tracking :

Non Flywheel

Global Keywords :

ABLS

Global Keywords :

Automatic restart

Global Keywords :

Diagnostic indicator

Global Keywords :

Europe connection line Supply

Global Keywords :

Omega rail

Global Keywords :

Overload protection

Global Keywords :

Regulated switch mode power supply

Global Keywords :

Schneider electric

Global Keywords :

Short-circuit protection

Global Keywords :

Single-phase N-L1/2-phase L1-L2

Global Keywords :

SMPS

Global Keywords :

Undervoltage protection

Global Keywords :

United States connection line Supply

Global warming ; Total life cycle? :

691 kg CO2 eq.

Height :

4.9 in (123.6 mm)

holding time :

> 20 ms 115 V AC

holding time :

> 40 ms 230 V AC

input protection type :

External protection (recommended) 10 A Curve C

input protection type :

External protection (recommended) 13 A Curve B

input protection type :

External protection (recommended) 20 A Curve C

input protection type :

Integrated fuse (not interchangeable) 5 A

Input Voltage :

100...240 V AC phase to phase

Input Voltage :

100...240 V AC single phase

Input Voltage :

140...340 V DC

inrush current :

40.0 A 115 V

inrush current :

80.0 A 230 V

IP Degree of Protection :

IP20

Kw Rating :

75 W

load capacitance :

5000 µF

Manufacturer :

Schneider Electric

Maximum Leakage Current :

1 mA 240 V AC

meantime between failure [MTBF] :

700000 h at 77 °F (25 °C), full load conforming to SR 332

Mounting Support :

Double-profile DIN rail

Mounting Support :

Top hat type TH35-15 rail IEC 60715

Mounting Support :

Top hat type TH35-7.5 rail IEC 60715

Net Weight :

0.49 lb(US) (0.22 kg)

network frequency limits :

50…60 Hz

Number of Units in Package 2 :

22

output coupling :

Parallel

output coupling :

Serial

Output Protection Type :

Against over temperature, protection technology: manual reset

Output Protection Type :

Against overload and short-circuits, protection technology: automatic reset

Output Protection Type :

Against overvoltage, protection technology: manual reset

Output Voltage :

12 V DC

output voltage limits :

11...14 V

Overvoltage Category :

II

Package 2 GTIN :

13606481500196

Package 2 Height :

11.81 in (30.000 cm)

Package 2 Length :

15.75 in (40.000 cm)

Package 2 Weight :

16.940 lb(US) (7.684 kg)

Package 2 width :

11.81 in (30.000 cm)

Packaging made with recycled cardboard :

No

Packaging without single use plastic :

No

Pollution Degree :

2

power dissipation in W :

16 W

power factor :

0.45 at 230 V AC

power factor :

0.55 at 115 V AC

power supply output current :

6.25 A

power supply type :

Regulated switch mode

Product Certifications :

CB Scheme

Product Certifications :

CE

Product Certifications :

CUL Listed

Product Certifications :

CUL Recognized

Product Certifications :

EAC

Product Certifications :

KC

Product Certifications :

NEC class 2

Product Certifications :

RCM

Product Or Component Type :

Power supply

SCIP Number :

698d9b2a-7a6a-4b8f-a149-489156f55645

Service Life :

10 year(s)

shock resistance :

150 m/s² 11 ms

Standards :

CSA C22.2 No 61010-1

Standards :

CSA C22.2 No 61010-2-201

Standards :

CSA C22.2 No 62368-1

Standards :

EN 61000-3-3

Standards :

EN 61010-2-201

Standards :

EN/IEC 61010-1

Standards :

EN/IEC 61204-3

Standards :

EN/IEC 62368-1

Standards :

IEC 61000-3-2

Standards :

IEC 61000-6-1

Standards :

IEC 61000-6-2

Standards :

IEC 61000-6-3

Standards :

IEC 61000-6-4

Standards :

IEC 62368-1

Standards :

UL 61010-1

Standards :

UL 61010-2-201

Standards :

UL 62368-1

Status Led :

1 LED (Green) output voltage

Supply :

SELV IEC 60204-1

Supply :

SELV IEC 60364-4-41

Supply :

SELV IEC 60950-1

Take-back :

No

Unit Type of Package 2 :

S03

UNSPSC Classification v19 :

39121004

UNSPSC Classification v23 :

39121004

variant option :

Optimized

vibration resistance :

10 m/s² (f= 9…200 Hz) conforming to IEC 60068-2-6

vibration resistance :

3 mm (f= 2…9 Hz) conforming to IEC 60068-2-6

Volume of Package 2 :

36000.000 cm3

Width :

1.06 in (27 mm)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/MODICON%20POWER%20SUPPLY%20FOR%20INDUSTRIAL%20USE%20-%20RAIL%20MOUNTING.PDF||~~PDF
