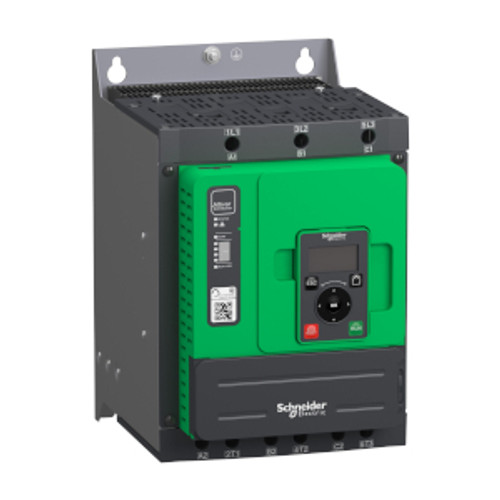

Schneider Electric ATS480D62Y Soft starter, Altistart 480, 62A, 208 to 690V AC, control supply 110 to 230V AC

Manufacturer :

Square D

Marking :

CCC

Marking :

CE

Marking :

CULus

Marking :

EAC

Marking :

RCM

Marking :

UKCA

maximum acceleration under shock impact (during op :

150 m/sÂ² at 11 ms

maximum acceleration under shock load (during stor :

100 m/sÂ² at 11 ms

maximum acceleration under shock load (during tran :

100 m/sÂ² at 11 ms

maximum acceleration under vibrational stress (dur :

10 m/sÂ² at 13...200 Hz

maximum acceleration under vibratory load (during :

10 m/sÂ² at 9...200 Hz

maximum acceleration under vibratory load (during :

15 m/sÂ² at 200...500 Hz

maximum deflection under vibratory load (during op :

1.5 mm at 2...13 Hz

maximum deflection under vibratory load (during st :

1.75 mm at 2...9 Hz

maximum deflection under vibratory load (during tr :

1.75 mm at 2...9 Hz

Maximum Horse Power Rating :

15.0 hp 208 V normal duty

Maximum Horse Power Rating :

15.0 hp 230 V heavy duty

Maximum Horse Power Rating :

20.0 hp 230 V normal duty

Maximum Horse Power Rating :

30.0 hp 460 V heavy duty

Maximum Horse Power Rating :

40.0 hp 460 V normal duty

Maximum Horse Power Rating :

40.0 hp 575 V heavy duty

Maximum Horse Power Rating :

50.0 hp 575 V normal duty

maximum permanent current :

47.0 A at 104 Â°F (40 Â°C) heavy duty

Maximum Switching Current :

Relay outputs 2 A 250 V AC

Maximum Switching Current :

Relay outputs 2 A 30 V DC

method of access :

Slave Modbus serial

minimum switching current :

100 mA 12 V DC relay outputs

motor power kW :

11.0 kW 230 V in the motor supply line heavy duty

motor power kW :

15.0 kW 230 V in the motor supply line normal duty

motor power kW :

22.0 kW 230 V to the motor delta terminals heavy duty

motor power kW :

22.0 kW 400 V in the motor supply line heavy duty

motor power kW :

22.0 kW 440 V in the motor supply line heavy duty

motor power kW :

30.0 kW 230 V to the motor delta terminals normal duty

motor power kW :

30.0 kW 400 V in the motor supply line normal duty

motor power kW :

30.0 kW 440 V in the motor supply line normal duty

motor power kW :

30.0 kW 500 V in the motor supply line heavy duty

motor power kW :

30.0 kW 525 V in the motor supply line heavy duty

motor power kW :

37.0 kW 500 V in the motor supply line normal duty

motor power kW :

37.0 kW 525 V in the motor supply line normal duty

motor power kW :

37.0 kW 660 V in the motor supply line heavy duty

motor power kW :

37.0 kW 690 V in the motor supply line heavy duty

motor power kW :

45.0 kW 400 V to the motor delta terminals heavy duty

motor power kW :

45.0 kW 660 V in the motor supply line normal duty

motor power kW :

45.0 kW 690 V in the motor supply line normal duty

motor power kW :

55.0 kW 400 V to the motor delta terminals normal duty

Net Weight :

18.3 lb(US) (8.3 kg)

Network Frequency :

50/60 Hz

noise level :

58.0 dB

number of addresses :

0â€¦227 Modbus serial

Number of Units in Package 2 :

8

Operating Altitude :

> 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m

operating position :

Vertical +/- 10 degree

option card :

Communication module CANopen daisy chain

option card :

Communication module CANopen open style

option card :

Communication module CANopen Sub-D

option card :

Communication module Modbus TCP/EtherNet/IP

option card :

Communication module Profibus DP V1

option card :

Communication module PROFINET

Output Compatibility :

Open collector level 1 PLC IEC 65A-68

output current drift :

150â€¦700 %

Package 2 GTIN :

73606481089044

Package 2 Height :

33.86 in (86.000 cm)

Package 2 Length :

31.50 in (80.000 cm)

Package 2 Weight :

188.495 lb(US) (85.500 kg)

Package 2 width :

23.62 in (60.000 cm)

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

Phase :

3 phase

Physical Interface :

2-wire RS 485

Pollution Degree :

Level 3

power loss per device current dependent :

181.0 W

power loss static current independent :

25.0 W

Product Certifications :

ABS

Product Certifications :

BV

Product Certifications :

CCC

Product Certifications :

CCS

Product Certifications :

CE

Product Certifications :

CULus

Product Certifications :

DNV

Product Certifications :

EAC

Product Certifications :

RCM

Product Certifications :

UKCA

Product Destination :

Asynchronous motors

Product Or Component Type :

Soft starter

Product Specific Application :

Process and infrastructures

Protection Type :

Current overload motor

Protection Type :

Excessive starting time, locked rotor motor

Protection Type :

Integrated thermal protection motor

Protection Type :

Line supply phase loss line

Protection Type :

Line supply phase loss motor

Protection Type :

Motor phase loss motor

Protection Type :

Phase failure line

Protection Type :

Thermal protection motor

Protection Type :

Thermal protection starter

Protection Type :

Underload motor

Relative Humidity :

0â€¦95 % without condensation or dripping water IEC 60068-2-3

relay output number :

3

relay output type :

Relay outputs R1A 1 NO

relay output type :

Relay outputs R1B 1 NO

relay output type :

Relay outputs RIC NO/NC programmable

SCIP Number :

5e2e4c7a-0593-47ad-92ac-80085d9dd549

Standards :

IEC 60664-1

Standards :

IEC 60947-4-2

Standards :

UL 60947-4-2

Suitable for mounting onto standard rails :

No

Supply Frequency :

50...60 Hz - 20...20 %

Take-back :

No

Temperature Shipping and Storage Range :

-13â€¦158 Â°F (-25â€¦70 Â°C)

torque control :

Yes

transmission frame :

RTU

Transmission Rate :

1200...256000 bit/s

type of polarization :

No impedance Modbus serial

Unit Type of Package 2 :

P06

UNSPSC Classification v23 :

39121521

utilisation category :

AC-3A

utilisation category :

AC-53A

volume of cooling air :

22719.2 Gal/hr(US) (86.0 m3/h)

Volume of Package 2 :

412800.000 cm3

Width :

7.5 in (190.0 mm)

with safety function Safe brake management (SBC/SB :

No

with safety function Safe Direction (SDI) :

No

with safety function Safe Operating Stop (SOS) :

No

with safety function Safe Position (SP) :

No

with safety function Safe programmable logic :

No

with safety function Safe Speed Monitor (SSM) :

No

with safety function Safe Stop 1 (SS1) :

No

with safety function Safe torque off (STO) :

No

with safety function Safely Limited Position (SLP) :

No

with safety function Safely Limited Speed (SLS) :

No

with sft fct Safe Stop 2 (SS2) :

No
