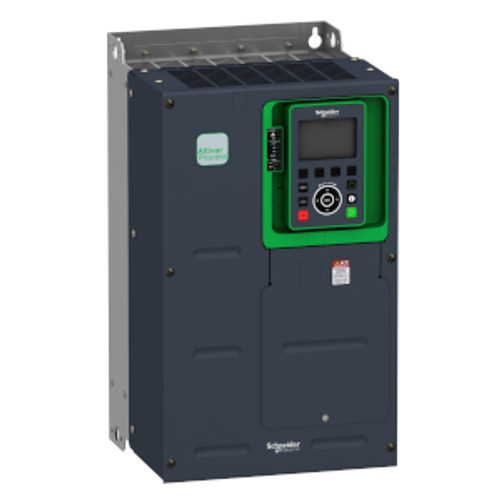

Schneider Electric ATV630D11Y6 variable speed drive, Altivar Process ATV600, ATV630, 11kW, 15hp, 500 to 690V, IP00

Manufacturer :

Square D

Marking :

CE

maximum acceleration under shock impact (during op :

150 m/sÂ² at 11 ms

maximum acceleration under shock load (during stor :

150 m/sÂ² at 11 ms

maximum acceleration under shock load (during tran :

150 m/sÂ² at 11 ms

maximum acceleration under vibrational stress (dur :

10 m/sÂ² at 13...200 Hz

maximum acceleration under vibratory load (during :

10 m/sÂ² at 13...200 Hz

maximum associated fuse rating :

25.0 A

maximum deflection under vibratory load (during op :

1.5 mm at 2...13 Hz

maximum deflection under vibratory load (during st :

1.5 mm at 2...13 Hz

maximum deflection under vibratory load (during tr :

1.5 mm at 2...13 Hz

Maximum Horse Power Rating :

10 hp 500 V normal duty

Maximum Horse Power Rating :

10 hp 690 V heavy duty

Maximum Horse Power Rating :

15 hp 690 V normal duty

Maximum Horse Power Rating :

7.5 hp 500 V heavy duty

Maximum Input Current per phase :

14.7 A

maximum output frequency :

500 kHz

maximum output voltage :

690.0 V

Maximum Switching Current :

Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC

Maximum Switching Current :

Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC

Maximum Switching Current :

Relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC

Maximum Switching Current :

Relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC

maximum transient current :

14.3 A 60 s heavy duty)

maximum transient current :

14.9 A 60 s normal duty)

method of access :

Slave Modbus TCP

minimum switching current :

Relay output R1, R2, R3 5 mA 24 V DC

motor power kW :

11 kW 690 V normal duty)

motor power kW :

5.5 kW 500 V heavy duty)

motor power kW :

7.5 kW 500 V normal duty)

motor power kW :

7.5 kW 690 V heavy duty)

motor slip compensation :

Adjustable

motor slip compensation :

Automatic whatever the load

motor slip compensation :

Can be suppressed

motor slip compensation :

Not available in permanent magnet motor law

Mounting Mode :

Wall mount

NEMA Protection Rating :

NEMA 1

Net Weight :

48.5 lb(US) (22 kg)

Network Frequency :

50-60 Hz

noise level :

52 dB 86/188/EEC

noise level :

58 dB

nominal output current :

13.5 A

Nominal Output Power :

11.0 kW

nominal switching frequency :

4 kHz

number of addresses :

1â€¦247 Modbus serial

number of HW interfaces industrial Ethernet :

1

number of HW interfaces other :

0

number of HW interfaces parallel :

0

number of HW interfaces PROFINET :

0

number of HW interfaces serial RS232 :

0

number of HW interfaces serial RS422 :

0

number of HW interfaces serial RS485 :

1

number of HW interfaces serial TTY :

0

number of HW interfaces USB :

0

number of input phases :

3

number of inputs, bidirectional, not potential-fre :

0

number of inputs, potential-free :

0

number of output phases :

3

Operating Altitude :

1000...4800 m with current derating 1 % per 100 m

operating element present :

Yes

operating position :

Vertical +/- 10 degree

optical interface present :

No

option card :

communication module, Ethernet Powerlink

option card :

Communication module, BACnet MS/TP

option card :

Slot A communication module, CANopen daisy chain RJ45

option card :

Slot A communication module, CANopen screw terminals

option card :

Slot A communication module, CANopen SUB-D 9

option card :

Slot A communication module, DeviceNet

option card :

Slot A communication module, Ethernet IP/Modbus TCP/MD-Link

option card :

Slot A communication module, Modbus TCP/EtherNet/IP

option card :

Slot A communication module, Profibus DP V1

option card :

Slot A communication module, Profinet

option card :

Slot A/slot B digital and analog I/O extension module

option card :

Slot A/slot B output relay extension module

Overvoltage Category :

III

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

permissible temporary current boost :

1.1 x In 60 s normal duty)

permissible temporary current boost :

1.5 x In 60 s heavy duty)

permitted relative humidity (during operation) :

Class 3K5 according to EN 60721-3

permitted relative humidity (during storage) :

Class 1K5 according to EN 60721-3

permitted relative humidity (during transport) :

Class 2K5 according to EN 60721-3

Phase :

3 phase

Physical Interface :

2-wire RS 485

Physical Interface :

Ethernet

Pollution Degree :

2

Pollution Degree :

2 IEC 61800-5-1

power dissipation in W :

Forced convection 198 W 500 V 4 kHz

power dissipation in W :

Natural convection 98 W 500 V 4 kHz

power loss per device current dependent :

277.0 W

power loss static current independent :

41.0 W

Product Certifications :

CSA

Product Certifications :

TÃœV

Product Certifications :

UL

Product contributes to saved and avoided emissions :

Yes

Product Destination :

Asynchronous motors

Product Destination :

Synchronous motors

Product Or Component Type :

Variable speed drive

Product Specific Application :

Process and utilities

prospective line Isc :

70 kA

Protection Type :

Break on the control circuit drive

Protection Type :

Line supply overvoltage drive

Protection Type :

Line supply phase loss drive

Protection Type :

Line supply undervoltage drive

Protection Type :

Motor phase break drive

Protection Type :

Motor phase break motor

Protection Type :

Overcurrent between output phases and earth drive

Protection Type :

Overheating drive

Protection Type :

Overload of output voltage drive

Protection Type :

Overspeed drive

Protection Type :

Overvoltages on the DC bus drive

Protection Type :

Safe torque off drive

Protection Type :

Safe torque off motor

Protection Type :

Short-circuit protection drive

Protection Type :

Thermal protection drive

Protection Type :

Thermal protection motor

Quantity Per Set :

1

refresh time :

Relay output R1, R2, R3)5 ms +/- 0.5 ms)

Regulation Loop :

Adjustable PID regulator

Relative Humidity :

5â€¦95 % without condensation IEC 60068-2-3

relative symmetric mains voltage tolerance :

10 %

relative symmetric network frequency tolerance :

5 %

relay output number :

3

relay output type :

Configurable relay logic R1 fault relay NO/NC 100000 cycles

relay output type :

Configurable relay logic R2 sequence relay NO 100000 cycles

relay output type :

Configurable relay logic R3 sequence relay NO 100000 cycles

Safety Function :

STO (safe torque off) SIL 3

sampling duration :

10 ms +/- 1 ms AO1) - analog output

sampling duration :

2 ms +/- 0.5 ms DI1...DI4) - discrete input

sampling duration :

5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input

sampling duration :

5 ms +/- 1 ms DI5, DI6) - discrete input

SCIP Number :

075941f9-bf60-4e63-ae5c-6fe3c8035357

shock resistance :

15 gn 11 ms IEC 60068-2-27

speed drive output frequency :

0.1â€¦500 Hz

Standards :

IEC 13849-1

Standards :

IEC 60721-3

Standards :

IEC 61000-3-12

Standards :

IEC 61508

Standards :

UL 508C

Standards :

EN/IEC 61800-3 environment 2 category C3

Standards :

Environment 2 category C3 IEC 61800-3

Standards :

IEC 61800-3

Standards :

IEC 61800-5-1

Supply :

External supply for digital inputs 24 V DC 19â€¦30 V)

Supply :

Internal supply for digital inputs and STO 24 V DC 21â€¦27 V)

Supply :

Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %

Supply Frequency :

50...60 Hz - 5...5 %

supporting protocol for ASI :

No

supporting protocol for AS-Interface Safety at Wor :

No

supporting protocol for BACnet :

No

supporting protocol for CAN :

Yes

supporting protocol for Data-Highway :

No

supporting protocol for DeviceNet :

No

supporting protocol for DeviceNet Safety :

No

supporting protocol for EtherNet/IP :

Yes

supporting protocol for Foundation Fieldbus :

No

supporting protocol for INTERBUS :

No

supporting protocol for INTERBUS-Safety :

No

supporting protocol for KNX :

No

supporting protocol for LON :

No

supporting protocol for MODBUS :

Yes

supporting protocol for other bus systems :

No

supporting protocol for PROFIBUS :

Yes

supporting protocol for PROFINET CBA :

Yes

supporting protocol for PROFINET IO :

Yes

supporting protocol for PROFIsafe :

No

supporting protocol for SafetyBUS P :

No

supporting protocol for SERCOS :

No

supporting protocol for SUCONET :

No

supporting protocol for TCP/IP :

Yes

Switching Frequency :

2...8 kHz adjustable

Switching Frequency :

4...8 kHz with derating factor

synchronous motor control profile :

Permanent magnet motor

synchronous motor control profile :

Synchronous reluctance motor

Take-back :

No

Temperature Ambient Operating Range :

5â€¦140 Â°F (-15â€¦60 Â°C)

Temperature Shipping and Storage Range :

-40â€¦158 Â°F (-40â€¦70 Â°C)

transmission frame :

RTU

Transmission Rate :

10, 100 Mbits

Transmission Rate :

4800 bps, 9600 bps, 19200 bps, 38.4 Kbps

type of cooling :

Forced convection

type of polarization :

No impedance

UNSPSC Classification v19 :

39122001

UNSPSC Classification v23 :

39122001

variant :

Standard version

vibration resistance :

1 gn (f= 13â€¦200 Hz) conforming to IEC 60068-2-6

vibration resistance :

1.5 mm peak to peak (f= 2â€¦13 Hz) conforming to IEC 60068-2-6

volume of cooling air :

87178.3 Gal/hr(US) (330 m3/h)

Width :

9.7 in (246 mm)

with safety function Safe brake management (SBC/SB :

No

with safety function Safe Direction (SDI) :

No

with safety function Safe Operating Stop (SOS) :

No

with safety function Safe Position (SP) :

No

with safety function Safe programmable logic :

No

with safety function Safe Speed Monitor (SSM) :

No

with safety function Safe Stop 1 (SS1) :

No

with safety function Safe torque off (STO) :

Yes

with safety function Safely Limited Position (SLP) :

No

with safety function Safely Limited Speed (SLS) :

No

with sft fct Safe Stop 2 (SS2) :

No
