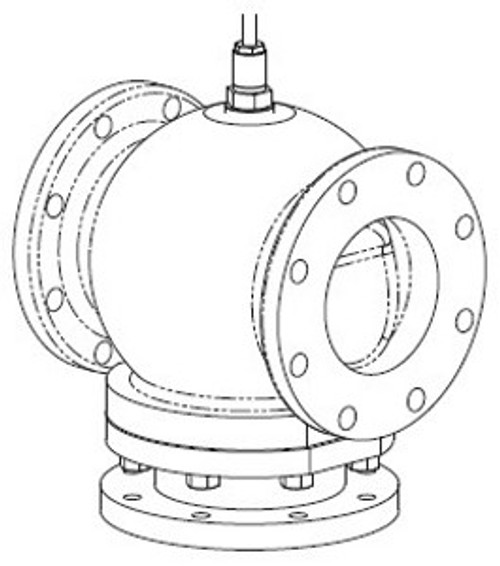

Valve Body (VB-9313-0-5-12): |Body Size: 2-1/2 in |Configuration: 3-Way Mixing |Type: Globe |Connection: Flanged |Stem Flow Action: Stem up, mixing closed A to AB |Material Trim: Brass |Flow Coefficient: 74 cv |Control Media: Water |Product Line: Schneider Electric |Product Series: VB-9300 Product Alert: Not for use with steam.
- Body Size : 65 mm (2-1/2 in)~~
- Brand : Schneider Electric
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 257
- Circularity Profile : No need of specific recycling operations
- Configuration : 3-Way Mixing
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Flow Characteristic : Linear
- Flow Coefficient : 64 kvs
- Flow Coefficient : 74 cv
- Global Keywords : 3 Way
- Global Keywords : Flange
- Global Keywords : Globe
- Global Keywords : Valve
- Global warming ; Total life cycle? : 257 kg CO2 eq.
- Manufacturer : Schneider Electric
- Material Body : Cast iron
- Material Plug : Brass
- Material Stem : Stainless Steel 316
- Material Trim : Brass
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : No
- Packing Material : Spring-Loaded PTFE/EPDM
- Pipe Size : 2-1/2 in
- Pressure Allowable Static : 200 psig up to 150 °F decreasing to 169 psig at 281 °F
- Pressure Class : 125 ANSI
- Product Alert : Not for use with steam.
- Product Or Component Type : Valve
- Rangeability : Greater than 500:1
- Recycled metal content at CR level : 0
- Seat Leakage : Port A: Class III (0.1 %)
- Seat Material : Port A: bronze
- Selection Tools : Valve Selection Tool
- Stem Flow Action : Stem Up, Mixing Closed A to AB
- Stem Movement : Linear
- Stroke Distance : 7/8 in
- Take-back : No
- Temperature Range Fluid : 39…300 °F (4…149 °C)
- Valve Product Series : VB-9300
- Valve Type : Globe
