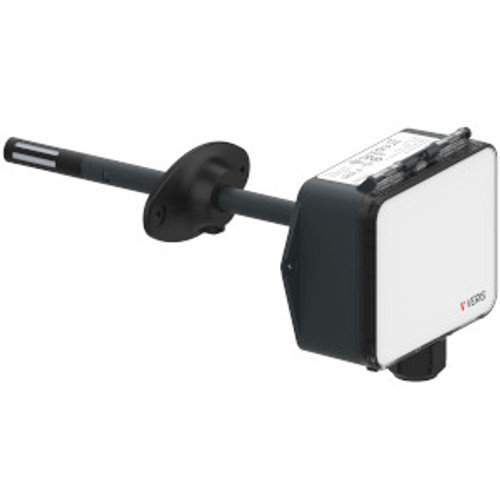

Humidity sensor, HO2 Series, wall mount, analog output, 3% accuracy, 10K curve G 11K shunt
- [Us] rated supply voltage : 20...30 V DC~~
- [Us] rated supply voltage : 24 V AC
- Analogue Output Type : 0...10 V DC
- Analogue Output Type : 0...5 V DC
- Analogue Output Type : 4...20 mA
- Application : HVAC
- Brand : Veris Industries
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 29
- Communication Network Type : Wired
- Connections - Terminals : Screwless terminals
- Depth : 5.2 in (133 mm)
- Enclosure Material : Polycarbonate strong housing
- Final Result for Connectable : Connectable ready
- Final Result for Flywheel performance tracking : Connectable products
- Global Keywords : Air Quality
- Global Keywords : Analog
- Global Keywords : Humidity
- Global Keywords : Outdoor
- Global Keywords : Plant Room
- Global Keywords : Sensor
- Global Keywords : Temperature
- Global Keywords : Thermistor
- Global warming ; Total life cycle? : 29 kg CO2 eq.
- Height : 7.0 in (177 mm)
- Humidity Calibration Certificate : Humidity: replaceable RH element available in 1% & 2% with NIST
- Humidity Calibration Certificate : Temperature: 1 pt
- Humidity Measurement Accuracy : +/- 3 % 0...100 % RH
- Indivisible Sale Qty : 1
- IP Degree of Protection : IP65
- Location : Outdoor
- Manufacturer : Veris Industries
- Market Segment : Buildings
- Measurement Temperature : -40…131 °F (-40…55 °C)
- Number of Units in Package 2 : 4
- Output Type : Analog
- Package 2 GTIN : 13606485849000
- Package 2 Height : 11.81 in (30 cm)
- Package 2 Length : 15.75 in (40 cm)
- Package 2 Weight : 4.4 lb(US) (2 kg)
- Package 2 width : 11.81 in (30 cm)
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Product Name : Plant Room Air Quality Sensor
- Product Or Component Type : Sensor
- Range : HO2 Series
- Relative Humidity : 0…95 % RH, non-condensing
- SCIP Number : 5386f444-bbfa-4e6f-ab91-3a532e954893
- Sensor Type : Thin film capacitive, replaceable Humidity
- Standards : EN 61000
- Standards : EN 61000-6-3
- Standards : EN 61326-1
- Standards : FCC Part 15 class A
- Standards : ICES-003
- Standards : REACH
- Standards : RoHS
- Standards : UL 916
- Storage Relative Humidity : 0…95 % RH, non-condensing
- Take-back : No
- Temperature Measurement Accuracy : +/- 0.2 °C
- Temperature Resolution : 0.1 °C
- Type Of Measurement : Humidity
- Type Of Measurement : Temperature
- Unit Type of Package 2 : S03
- Volume of Package 2 : 36000 cm3
- Width : 1.9 in (48 mm)
