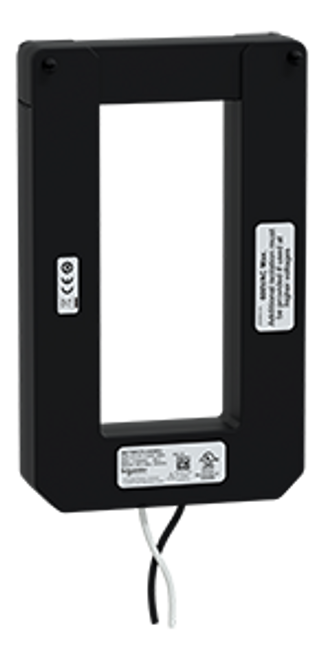

METSECTLV4080U

Brand :

Schneider Electric

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

current transformer type :

Split core

Depth :

1.16 in (29.46 mm)

Device Short Name :

LVCT

Electrical Connection :

Flying lead 8 ft (2.4 m) AWG 16) 600 V

Final Result for Flywheel performance tracking :

Non Flywheel

Global Keywords :

Current measurement

Global Keywords :

Current transducer

Global Keywords :

SCCT

Global Keywords :

Split core

Global Keywords :

Split core current transducer

Global Keywords :

Split-core

Global Keywords :

UL2808

Height :

Internal: 5.73 in (145.54 mm)

Height :

Total: 8.12 in (206.25 mm)

Indivisible Sale Qty :

1

Line Rated Current :

800 A

Measurement Accuracy :

1 %

Net Weight :

37.8 oz (1072 g)

Network Frequency :

50 Hz

Network Frequency :

60 Hz

Number of Units in Package 2 :

6

Number of Units in Package 3 :

126

Output Voltage :

0.333 V

Package 2 GTIN :

13606481060317

Package 2 Height :

10.98 in (27.9 cm)

Package 2 Length :

18.46 in (46.9 cm)

Package 2 Weight :

17.9756 lb(US) (8.1536 kg)

Package 2 width :

12.95 in (32.9 cm)

Package 3 Height :

40.75 in (103.5 cm)

Package 3 Length :

47.24 in (120 cm)

Package 3 Weight :

410.3370 lb(US) (186.1256 kg)

Package 3 width :

39.37 in (100 cm)

Packaging made with recycled cardboard :

No

Packaging without single use plastic :

No

Product Destination :

BCPM

Product Destination :

BCPMSC

Product Destination :

EM3500

Product Destination :

EM4200

Product Destination :

EM4900

Product Destination :

IEM3000

Product Or Component Type :

Current transformer

Range :

PowerLogic

Range Compatibility :

Acti 9 Acti9 iEM3000 iEM3455 energy meter

Range Compatibility :

Acti 9 Acti9 iEM3000 iEM3465 energy meter

Range Compatibility :

PowerLogic PowerLogic BCPM BCPMA multi-circuit energy meter

Range Compatibility :

PowerLogic PowerLogic BCPM BCPMB multi-circuit energy meter

Range Compatibility :

PowerLogic PowerLogic BCPM BCPME multi-circuit energy meter

Range Compatibility :

PowerLogic PowerLogic BCPMSC BCPMSCA multi-circuit energy meter

Range Compatibility :

PowerLogic PowerLogic BCPMSC BCPMSCB multi-circuit energy meter

Range Compatibility :

PowerLogic PowerLogic BCPMSC BCPMSCE multi-circuit energy meter

Range Compatibility :

PowerLogic PowerLogic EM3500 EM3502 energy meter

Range Compatibility :

PowerLogic PowerLogic EM3500 EM3550 energy meter

Range Compatibility :

PowerLogic PowerLogic EM3500 EM3555 energy meter

Range Compatibility :

PowerLogic PowerLogic EM3500 EM3560 energy meter

Range Compatibility :

PowerLogic PowerLogic EM3500 EM3561 energy meter

Range Compatibility :

PowerLogic PowerLogic EM4200 EM4235 energy meter

Range Compatibility :

PowerLogic PowerLogic EM4200 EM4236 energy meter

Range Compatibility :

PowerLogic PowerLogic EM4900 EM4904 multi-circuit energy meter

Range Compatibility :

PowerLogic PowerLogic EM4900 EM4908 multi-circuit energy meter

Range Compatibility :

PowerLogic PowerLogic EM4900 EM4914 multi-circuit energy meter

Range Compatibility :

PowerLogic PowerLogic EM4900 EM4928 multi-circuit energy meter

REACh free of SVHC :

Yes

Relative Humidity :

0…95 %

Standards :

IEC 61869-2

Standards :

UL 2808

Take-back :

No

Temperature Ambient Operating Range :

5…140 °F (-15…60 °C)

Temperature Shipping and Storage Range :

-40…158 °F (-40…70 °C)

Toxic heavy metal free :

Yes

Unit Type of Package 2 :

CAR

Unit Type of Package 3 :

PAL

UNSPSC Classification v19 :

39121032

UNSPSC Classification v23 :

39121032

Volume of Package 2 :

43049.979 cm3

Volume of Package 3 :

1242000 cm3

Width :

Internal: 2.47 in (62.74 mm)

Width :

Total: 4.91 in (124.71 mm)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/UKDOC__METSECTXX_A2-V2.PDF
