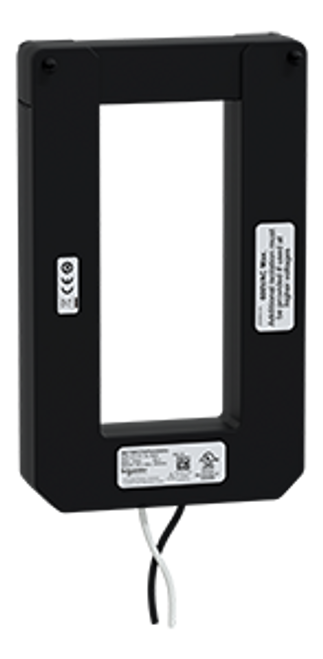

METSECTSP5A4080U

Accessory / Separate Part Category :

Measurement accessory~~

Ambient Air Temperature For Operation :

5…140 °F (-15…60 °C)

Brand :

Schneider Electric

By Schneider :

Yes

current transformer ratio :

800/5

current transformer type :

Split core

Depth :

1.16 in (29.46 mm)

Electrical Connection :

8 ft (2.4 m) AWG 16 flying lead

Final Result for Connectable :

Not connectable

Final Result for Flywheel performance tracking :

Non Flywheel

Global Keywords :

Current transformer

Global Keywords :

PowerLogic

Global Keywords :

SCCT

Global Keywords :

Split core

Global Keywords :

Split core current transformer

Global Keywords :

Split-core

Global Keywords :

UL2808

Height :

Internal: 5.73 in (145.54 mm)

Height :

Total: 8.12 in (206.25 mm)

Indivisible Sale Qty :

1

installation category :

III

insulation :

Basic insulation 600 V AC

insulation :

Reinforced insulation 300 V AC

Manufacturer :

Schneider Electric

Measurement Accuracy :

1 %

Mounting Location :

Indoor use only

Network Frequency :

50 Hz

Network Frequency :

60 Hz

Network Type :

AC

Number of Units in Package 2 :

6

Number of Units in Package 3 :

126

Package 2 Height :

13.50 in (34.290 cm)

Package 2 Length :

21.00 in (53.340 cm)

Package 2 Weight :

17.961 lb(US) (8.147 kg)

Package 2 width :

14.00 in (35.560 cm)

Package 3 Height :

43.00 in (109.220 cm)

Package 3 Length :

48.00 in (121.920 cm)

Package 3 Weight :

417.0003 lb(US) (189.148 kg)

Package 3 width :

40.00 in (101.600 cm)

Packaging made with recycled cardboard :

No

Packaging without single use plastic :

No

Pollution Degree :

2

primary operational current :

800 A

Product Certifications :

UL

Product Or Component Type :

Current transformer

Range :

PowerLogic

Range Compatibility :

Acti9 Acti9 iEM3000 energy meter

Range Compatibility :

EasyLogic EasyLogic PM2100 power meter

Range Compatibility :

EasyLogic EasyLogic PM2200 power meter

Range Compatibility :

PowerLogic PowerLogic PM3000 power meter

Range Compatibility :

PowerLogic PowerLogic PM5000 power meter

Relative Humidity :

0…95 % non-condensing

Sales Unit :

PCE

secondary current :

5 A

Standards :

IEC 61869-2

Standards :

UL 2808

Take-back :

No

Temperature Shipping and Storage Range :

-40…158 °F (-40…70 °C)

Toxic heavy metal free :

Yes

Unit Type of Package 2 :

CAR

Unit Type of Package 3 :

PAL

Volume of Package 2 :

65040.257 cm3

Volume of Package 3 :

1352916.004 cm3

Width :

Internal: 2.47 in (62.74 mm)

Width :

Total: 4.91 in (124.71 mm)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/UKDOC__METSECTXX_A2-V2.PDF
