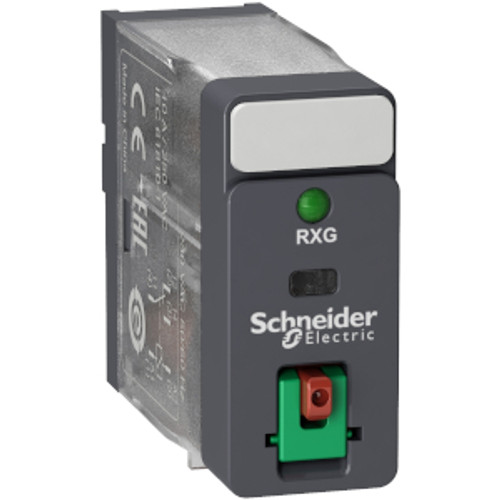

RXG12B7

[Ithe] conventional enclosed thermal current :

10 A -40…131 °F (-40…55 °C)~~

[Uc] control circuit voltage :

24 V

[Uc] control circuit voltage :

24 V AC

[Ui] rated insulation voltage :

250 V IEC

[Ui] rated insulation voltage :

300 V CSA

[Ui] rated insulation voltage :

300 V UL

Brand :

Schneider Electric

By Schneider :

Yes

Carbon footprint (kg CO2 eq, Total Life cycle) :

11

Circularity Profile :

No need of specific recycling operations

contact resistance :

100 mOhm

Contacts Material :

Silver alloy (AgSnO2In2O3)

Contacts Type And Composition :

1 C/O

control circuit type :

AC

Device Presentation :

Complete product

dielectric strength :

1000 V AC between contacts with micro disconnection

dielectric strength :

5000 V AC between coil and contact with reinforced insulation

drop-out voltage threshold :

>= 0.3 Uc AC

Final Result for Flywheel performance tracking :

Non Flywheel

Global Keywords :

1 C/O contact

Global Keywords :

Harmony relay

Global Keywords :

Interfacing Plug-In Relay

Global Keywords :

LED Indicator

Global Keywords :

Lockable test button

Global Keywords :

Plug-in

Global Keywords :

RXG

Global Keywords :

Schneider electric

Global Keywords :

SPDT

Global warming ; Total life cycle? :

11 kg CO2 eq.

Insulation Class :

Class F

insulation resistance :

1000 MOhm at 500 V DC

IP Degree of Protection :

IP40

Line Rated Current :

10 A

load current :

10 A 250 V AC

Local Signalling :

Flag

Manufacturer :

Schneider Electric

maximum switching capacity :

2500 VA

maximum switching voltage :

250 V AC

maximum switching voltage :

30 V DC

Mechanical Durability :

10000000 cycles

minimum switching capacity :

500 mW at 100 mA, 5 V DC

Net Weight :

0.04 lb(US) (0.02 kg)

Number of Units in Package 2 :

10

Number of Units in Package 3 :

200

Operating Time :

20 ms

Override :

Lockable test button

Overvoltage Category :

III

Package 2 GTIN :

13606480688666

Package 2 Height :

1.38 in (3.5 cm)

Package 2 Length :

3.58 in (9.1 cm)

Package 2 Weight :

8.0 oz (226.0 g)

Package 2 width :

3.27 in (8.3 cm)

Package 3 GTIN :

43606480688667

Package 3 Height :

5.91 in (15.0 cm)

Package 3 Length :

15.75 in (40.0 cm)

Package 3 Weight :

10.76 lb(US) (4.88 kg)

Package 3 width :

5.91 in (15.0 cm)

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

Yes

Pollution Degree :

2

presentation of legend :

With

Product Certifications :

CE

Product Certifications :

CSA

Product Certifications :

DNV-GL

Product Certifications :

EAC

Product Certifications :

UL

Product Or Component Type :

Plug-in relay

protection category :

RT I

REACh free of SVHC :

Yes

Relative Humidity :

10…85 %

Relay Type :

Interface relay

reset time :

20 ms

safety reliability data :

B10d = 100000

series name :

RXG series

shape of pin :

Flat (faston type)

Standards :

CSA C22.2 No 14

Standards :

IEC 61810-1

Standards :

UL 508

Status Led :

With

Sustainable packaging :

Yes

Take-back :

No

Temperature Ambient Operating Range :

-40…158 °F (-40…70 °C)

Temperature Shipping and Storage Range :

-40…185 °F (-40…85 °C)

test levels :

Level A group mounting

Toxic heavy metal free :

Yes

Unit Type of Package 2 :

BB1

Unit Type of Package 3 :

S01

UNSPSC Classification v19 :

39122326

UNSPSC Classification v23 :

39122326

utilisation coefficient :

20 %

vibration resistance :

3 gn +/- 0.75 mm 10…150 Hz)in operation

vibration resistance :

5 gn +/- 0.75 mm 10…150 Hz)not in operation

Volume of Package 2 :

264.355 cm3

Volume of Package 3 :

9000.0 cm3

PDF :

https://iportal2.schneider-electric.com/Contents/docs/RXG12B7_DATA%20SHEET.PDF
