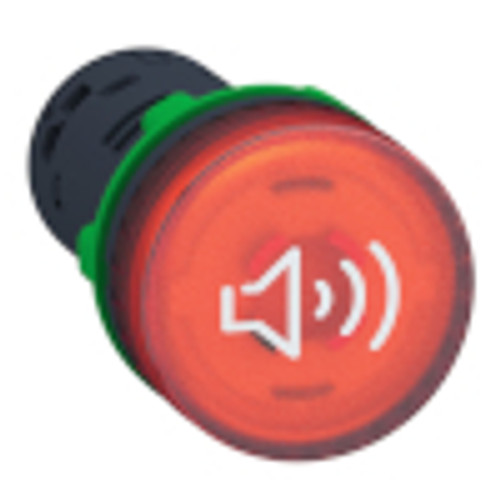

Harmony XB5, Illuminated buzzer, plastic, red, Ø22, continuous or intermittent tone, 24 V AC/DC
- [Us] rated supply voltage : 24 V~~
- [Us] rated supply voltage : 24 V +/- 10 %
- bezel material : Plastic
- Brand : Schneider Electric
- By Schneider : Yes
- cap/operator or lens colour : Red
- Carbon footprint (kg CO2 eq, Total Life cycle) : 2
- Circular Eligibility : Repack list
- Circularity Profile : No need of specific recycling operations
- Depth : 2.2 in (55 mm)
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : Buzzer
- Global Keywords : Harmony
- Global Keywords : Illuminated buzzer
- Global Keywords : IP 69
- Global Keywords : Modern design
- Global Keywords : Pilot light
- Global Keywords : Push Button
- Global Keywords : Pushbutton
- Global Keywords : Robust
- Global Keywords : Schneider electric
- Global Keywords : Selector
- Global Keywords : Switch
- Global Keywords : XB5
- Global warming ; Total life cycle? : 2 kg CO2 eq.
- Height : 1.1 in (29 mm)
- Manufacturer : Square D
- mounting diameter : 0.9 in (22 mm)
- NEMA Protection Rating : NEMA 13
- NEMA Protection Rating : NEMA 4X
- Net Weight : 0.053 lb(US) (0.024 kg)
- noise level : 90 dB 6.8 kHz 0.1 m +/- 10 %
- Number of Units in Package 2 : 88
- Number of Units in Package 3 : 1408
- Overvoltage Category : Class II conforming to IEC 60536
- Package 2 GTIN : 43606481352437
- Package 2 Height : 5.91 in (15.000 cm)
- Package 2 Length : 15.75 in (40.000 cm)
- Package 2 Weight : 5.796 lb(US) (2.629 kg)
- Package 2 width : 5.91 in (15.000 cm)
- Package 3 Height : 27.56 in (70.000 cm)
- Package 3 Length : 31.50 in (80.000 cm)
- Package 3 Weight : 94.834 lb(US) (43.016 kg)
- Package 3 width : 23.62 in (60.000 cm)
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : Yes
- Product Certifications : BV
- Product Certifications : CSA
- Product Certifications : UL Listed
- Product Or Component Type : Annunciator
- Protective Treatment : TH
- resistance to high pressure washer : 1305.3 psi (9000000 Pa) 176 °F (80 °C) 0.1 m
- SCIP Number : 894a86fe-2d08-47ec-916c-29e3fe4279be
- signalling type : Continuous or intermittent tone
- Standards : CSA C22.2 No 14
- Standards : IEC 50102
- Standards : IEC 60529
- Standards : IEC 60947-1
- Standards : IEC 60947-5-1
- Standards : IEC 60947-5-4
- Standards : IEC 62262
- Standards : JIS C8201-1
- Standards : JIS C8201-5-1
- Standards : UL 508
- Supply Circuit Type : AC/DC
- Supply Frequency : 50/60 Hz
- Take-back : No
- Temperature Ambient Operating Range : -40…158 °F (-40…70 °C)
- Temperature Shipping and Storage Range : -40…158 °F (-40…70 °C)
- Unit Type of Package 2 : S01
- Unit Type of Package 3 : P06
- UNSPSC Classification v19 : 39121534
- UNSPSC Classification v23 : 39121534
- Volume of Package 2 : 9000.000 cm3
- Volume of Package 3 : 336000.000 cm3
- Width : 1.1 in (29 mm)
