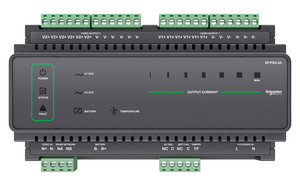

Security Expert security purpose power module, 4 A

$0.00
(No reviews yet) Write a Review
SKU:
SP-PSU-4A
Mains input ideal for reducing complexity in set up and ready deployment of module |2 Form B Relay outputs that can be used as programmable outputs while the module is online, or as additional status outputs for monitoring battery failure/disconnection and AC failure when the module is offline or in standalone mode |Battery backup connection for continued power delivery in power outage conditions |Intelligent charging algorithm monitors battery and AC supply allowing optimum performance |Processor controlled battery level testing and indication |Connects to the Security Expert module network for intelligent communication and monitoring of actual values |High performance 32 Bit processor |Designed for use with industry standard DIN Rail mounting
Application :
Power supply
Backup Type :
Battery
Battery Type :
2 gel 7 Ah
Battery Voltage :
10.5 V low level
Battery Voltage :
11.5 V reset
Brand :
Schneider Electric
By Schneider :
Yes
Charging Current :
500 mA
Color :
Black
Communication Interface :
RS485
Device Short Name :
SP-PSU-4A
Directives :
2014/30/EU - electromagnetic compatibility
Directives :
2014/35/EU - low voltage directive
Discrete Input Type :
8 trouble input
Environmental Characteristic :
Indoor use
Final Result for Connectable :
Connectable ready
Final Result for Flywheel performance tracking :
Edge control
Function Available :
Intelligent charging algorithm monitors battery and AC supply
Function Available :
Processor controlled battery level testing and indication
Global Keywords :
Expert
Global Keywords :
Module
Global Keywords :
Power
Global Keywords :
Security
Global Keywords :
Security Expert
Height :
2.4 in (60 mm)
Indivisible Sale Qty :
1
Input Voltage :
120 V AC 1500 mA
Input Voltage Limits :
90...264 V AC 47…63 Hz
Length :
6.2 in (156.8 mm)
Local Signalling :
1 green LED, power
Local Signalling :
1 green/red LED, battery status
Local Signalling :
1 green/red LED, CPU temperature
Local Signalling :
1 green/red LED, status
Local Signalling :
1 red LED, fault
Local Signalling :
2 green/red LED, output status
Local Signalling :
7 green/red LED, output current
Mounting Mode :
DIN Rail Mount
Net Weight :
15.3 oz (434 g)
Number Of Outputs :
2 form B relay output
Output Voltage :
12.2 V DC
Output Voltage :
12.64 V DC
Packaging made with recycled cardboard :
No
Packaging without single use plastic :
No
Processor Name :
CPU RISC 32-bit 2 GB
Product Certifications :
ACMA
Product Certifications :
CE
Product Or Component Type :
Power supply module
Quality Labels :
RCM
Range :
EcoStruxure Security Expert
Range Compatibility :
EcoStruxure Security Expert controller
Range Compatibility :
EcoStruxure Security Expert door expansion module
Range Compatibility :
EcoStruxure Security Expert I/O expansion module
Range Compatibility :
EcoStruxure Security Expert input module
Range Compatibility :
EcoStruxure Security Expert output module
Relative Humidity :
0…93 % non-condensing
SCIP Number :
718c040e-0614-416c-a41a-8d48866248dd
Standards :
CAN/ULC-S304-06
Standards :
CAN/ULC-S319-05
Standards :
CAN/ULC-S559-04
Standards :
CSN EN 60950-1:ed. 2, 2006
Standards :
EN 50131-1:2006
Standards :
EN 50131-3:2009
Standards :
EN 50131-6:2008
Standards :
FCC CFR 47 part 15
Standards :
UL 1610
Standards :
UL 294
Supply :
Mains
Take-back :
No
Tamperproof Of Settings :
Tamper contact
Temperature Ambient Operating Range :
32…122 °F (0…50 °C)
Temperature Shipping and Storage Range :
14…185 °F (-10…85 °C)
Width :
3.5 in (90 mm)
PDF :
https://iportal2.schneider-electric.com/Contents/docs/SECURITY%20PURPOSE%20POWER%20MODULE%204A.PDF
