Ideal for schools and larger sites where long cable runs and complex wiring routes are present |Enables the simple upgrade of older systems where detectors are connected in a four-wire bus |Reduces the cost of labor for cabling during an upgrade |Connects directly to the RS-485 module network and utilizes secure and encrypted RS-485 module communications |Connect any combination of normally closed or normally open zones |Utilizes analog to digital processing with 5x over sampling |4 state input alarm using resistors to provide short, alarm, closed and tamper conditions |High performance 32 Bit processor |Online and remote upgradable firmware
- Application : Equipment monitoring and control
- Brand : Schneider Electric
- By Schneider : Yes
- Color : Black
- Directives : 2014/30/EU - electromagnetic compatibility
- Directives : 2014/35/EU - low voltage directive
- Discrete Input Type : 1 assignable
- Discrete Input Type : 4 event-triggered alarm input
- Environmental Characteristic : Indoor use
- Final Result for Connectable : Connectable ready
- Final Result for Flywheel performance tracking : Edge control
- Function Available : Firmware update
- Global Keywords : Expansion module
- Global Keywords : Single zone
- Height : 0.8 in (20 mm)
- Indivisible Sale Qty : 1
- Line Rated Current : 20 mA
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Processor Name : CPU RISC 32-bit 2 GB
- Product Certifications : ACMA
- Product Certifications : AS/NZS
- Product Certifications : CE

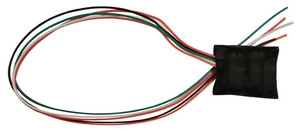

- Product Or Component Type : Input module
- Quality Labels : RCM
- Range : EcoStruxure Security Expert
- Range Compatibility : EcoStruxure Security Expert controller
- Relative Humidity : 0…93 % non-condensing
- SCIP Number : 718c040e-0614-416c-a41a-8d48866248dd
- Standards : FCC CFR 47 part 15: class A
- Standards : ICES-003 class A
- Take-back : No
- Temperature Ambient Operating Range : 32…122 °F (0…50 °C)
- Width : 0.7 in (18 mm)
