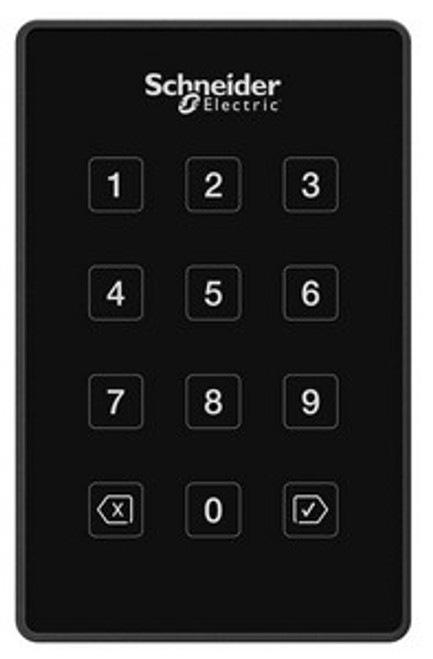

Multi card technology provides support for DESFire, MIFARE and 125kHz cards from a single reader. Smart Card Reader with Keypad and Bluetooth |Encrypted RS-485 or standard Wiegand connection |Configurable LED strip: 2 color control (blue and green) via external LED wiring16 color selectable for Security Expert function codes (RS-485 connection only) |Fully encapsulated design with environment IP Rating of IP65 for outdoor and indoor operation |Read range up to 60mm (2.36") with proximity ISO cards |Built-in clone detection when using Schneider Electric Secured MIFARE
- [Us] rated supply voltage : 9.5...14 V DC
- Brand : Schneider Electric
- By Schneider : Yes
- Color : Black
- Depth : 0.7 in (18 mm)
- Electrical Connection : Pigtail connector
- Final Result for Connectable : Connectable ready
- Final Result for Flywheel performance tracking : Connectable products
- Function Available : Keypad
- Global Keywords : Expert
- Global Keywords : Keypad
- Global Keywords : Reader
- Global Keywords : Security Expert
- Global Keywords : Smartcard
- Height : 4.5 in (115 mm)
- Indivisible Sale Qty : 1
- IP Protection Rating : IP65
- Line Rated Current : 162 mA
- Maximum Cable Distance Between Devices : 2952.8 ft (900 m) RS485
- Maximum Cable Distance Between Devices : 492.1 ft (150 m) Wiegand
- Mounting Mode : Wall-mounted
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Reading Distance : 0.6-2.36" (15-60 mm) for
- RFID Frequency : 125 kHz
- RFID Frequency : 13.56 MHz
- SCIP Number : Fec14c1d-cd56-42e9-a97d-9e75684e9821
- Take-back : No
- Temperature Ambient Operating Range : -31…149 °F (-35…65 °C)
- Width : 2.9 in (73 mm)
