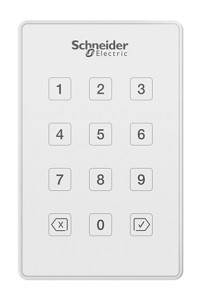

Single card technology (13.56MHz) provides support for DESFire, MIFARE cards from a single reader. Smart Card Reader with Keypad. |Encrypted RS-485 or standard Wiegand connection |Configurable LED strip: 2 color control (blue and green) via external LED wiring, 16 color selectable for Security Expert function codes (RS-485 connection only) |Fully encapsulated design with environment IP Rating of IP65 for outdoor and indoor operation |Read range up to 60mm (2.36") with proximity ISO cards |Built-in clone detection when using Schneider Electric Secured MIFARE
- [Us] rated supply voltage : 9.5...14 V DC
- Brand : Schneider Electric
- By Schneider : Yes
- Color : White
- Communication Port Protocol : RS485
- Communication Port Protocol : Wiegand
- Control Button Type : 1 push-button
- Depth : 0.7 in (18 mm)
- Final Result for Connectable : Connectable ready
- Final Result for Flywheel performance tracking : Connectable products
- Height : 4.5 in (115 mm)
- Indivisible Sale Qty : 1
- Line Rated Current : 130 mA
- Maximum Cable Distance Between Devices : 492.1 ft (150 m)
- Mounting Mode : Wall-mounted
- Net Weight : 5.5 oz (155.8 g)
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Product Certifications : CE
- Product Certifications : RCM
- Product Or Component Type : Access control card reader
- SCIP Number : Fec14c1d-cd56-42e9-a97d-9e75684e9821
- Standards : CAN/ULC-S319-05
- Standards : EN 50131-1:2006
- Standards : EN 50131-3:2009
- Standards : EN 50131-6:2008
- Standards : FCC CFR 47 part 15:class A
- Standards : ICES-003
- Standards : UL 294
- Take-back : No
- Technology Type : RFID
- Temperature Ambient Operating Range : -31…149 °F (-35…65 °C)
- Temperature Shipping and Storage Range : 14…185 °F (-10…85 °C)
- Width : 2.9 in (73 mm)
