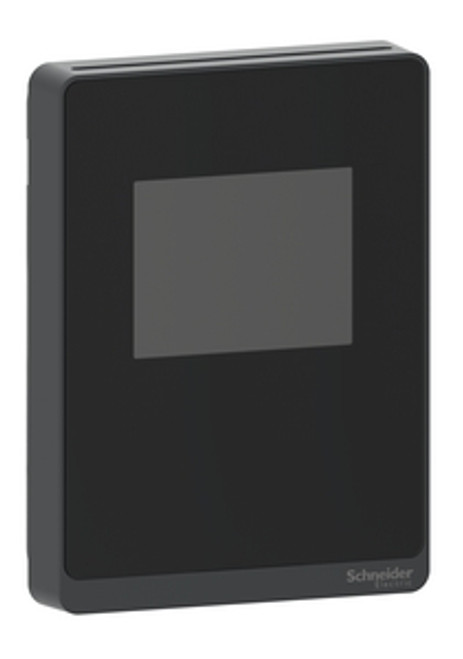

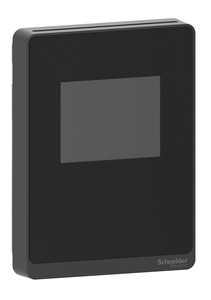

SLABTC2

[Us] rated supply voltage :

20...30 V DC~~

[Us] rated supply voltage :

24 V AC

Application :

Fan speed controller

Application :

HVAC

Application :

Temperature control

Brand :

Schneider Electric

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

137

Color :

Black

Communication Network Type :

Wired

Connections - Terminals :

Screw terminal - 2 AWG 24...AWG 18)

Control Type :

tactile

Depth :

0.9 in (23.7 mm)

Device Presentation :

Complete product

Display Resolution :

240 x 300 pixels

Display Size :

2.4 inch

Display Type :

Colour touchscreen

Final Result for Connectable :

Connectable ready

Final Result for Flywheel performance tracking :

Connectable products

Function Available :

With CO2 sensor

Function Available :

With humidity sensor

Function Available :

With temperature sensor

Global Keywords :

Analog

Global Keywords :

HVAC

Global Keywords :

IAQ

Global Keywords :

Sensor

Global Keywords :

SLA

Global warming ; Total life cycle? :

137 kg CO2 eq.

Height :

3.3 in (85 mm)

Humidity Calibration Certificate :

Humidity: replaceable RH element available in 1% & 2% with NIST

Humidity Setting Range :

0…100 %

Hysteresis :

1.5 %

Information Displayed :

CO2

Information Displayed :

Menu-driven user interface

Information Displayed :

Relative humidity

Information Displayed :

Temperature

Information Displayed :

Temperature set point

Location :

Living Space

Material :

ABS (acrylonitrile butadiene-styrene)

Mounting Support :

Wall Mount

Network Frequency :

50 Hz

Network Frequency :

60 Hz

Number Of Outputs :

1 configurable

Number Of Outputs :

1 fan

Output Type :

Analog

Output Voltage :

0...10 V configurable analog output

Output Voltage :

0...10 V fan speed

Output Voltage :

0...5 V configurable analog output

Packaging made with recycled cardboard :

No

Packaging without single use plastic :

No

Product Certifications :

CE conforming to EN 61000-6-2

Product Certifications :

CE conforming to EN 61000-6-3

Product Certifications :

CE conforming to EN 61326-1

Product Certifications :

CULus

Product Certifications :

EAC

Product Certifications :

ICES-003

Product Certifications :

RCM

Product Name :

SpaceLogic Room Unit

Product Or Component Type :

Sensor

Product Specific Application :

Humidity control

Range :

SpaceLogic

Range Compatibility :

EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers

Repeat Accuracy :

+/- 20 ppm

SCIP Number :

D7ce935c-f4cc-49d3-a53e-04142de5fa03

Selection Tools :

HVAC Sensors

Sensor Type :

NDIR (non-dispersive infrared)

Sensor Type :

thin-film capacitive

Sensor Type :

transmitter

Standards :

FCC Part 15 class B

Standards :

UL 916

Surface Finish :

Glossy

Take-back :

No

Temperature Ambient Operating Range :

32…122 °F (0…50 °C)

Temperature Setting Range :

32…122 °F (0…50 °C)

Temperature Setting Range :

50…95 °F (10…35 °C)

Type Of Measurement :

Carbon Dioxide (CO2)

Type Of Measurement :

Humidity

Type Of Measurement :

Temperature

Width :

4.5 in (115 mm)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/SPACELOGIC%20SLA%20SERIES%20AIR%20QUALITY%20SENSORS%20%E2%80%93%20ANALOG%20SPECIFICATION%20SHEET.PDF
