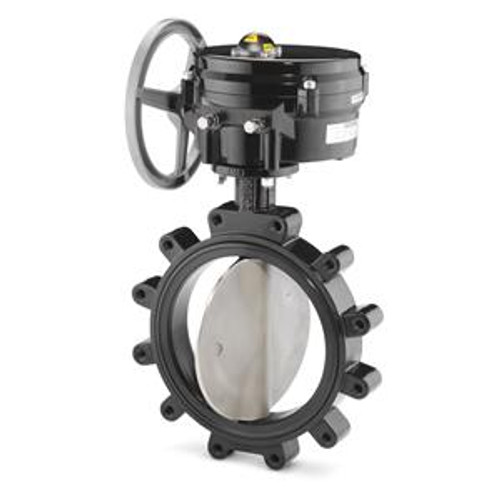

B206UC-SA266.530

Valve Size :

6 in

Flow Coefficient, Cv :

567

Valve Type :

Two-way

Valve Body Style :

Rotary-Butterfly

Port Configuration :

2-Way Normally closed

End Connection :

Lug

Material, valve body :

Cast Iron

Trim Material :

Stainless Steel

Butterfly Disc :

Under Cut Disc

Butterfly Heater :

YES

Butterfly Limit Switch :

YES

Flow Characteristic :

Modified Equal-percentage

Medium :

Water , Water with anti-freeze

Max GPM :

2646 gpm

Pressure Class :

ANSI 125

High temperature :

NO

Max. Inlet Pressure (absolute), Liquid :

250 psi

Max. Differential Pressure, Liquid :

29 psi

Medium temperature :

-20…250 ºF

Close-off Pressure :

50 psi

Valve Actuator Type :

Electronic

Control Signal :

0...10 Vdc

Fail Safe :

No

Supply Voltage :

120 VAC

Auxiliary Switch :

Yes

Dimensions (W x H x D) :

4.8 x 20.81 x 8 in

Standard :

NEMA 4

Datasheet :

https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5cA6V11858954_Resilient%2520Seat%2520Butterfly%2520Valves%2520Technical%2520Instruct_en.pdf&EXT=.pdf&SID=A6V11858954&KEY=3&DTP=Data+Sheet+for+Product

Datasheet :

https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5cA6V11858963_Resilient%2520Seat%2520Butterfly%2520Valves%2520Technical%2520Specific_en.pdf&EXT=.pdf&SID=A6V11858963&KEY=3&DTP=Data+Sheet+for+Product

Datasheet :

https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5cA6V12069976_A-Series%2520Industrial%2520530%2520lb-in%2520Electric%2520Actuator%2520Te_en.pdf&EXT=.pdf&SID=A6V12069976&KEY=3&DTP=Data+Sheet+for+Product
