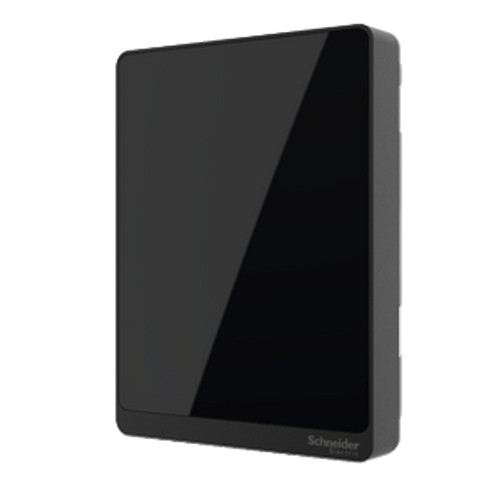

SLA Series Living Space Resistive Temperature Sensors offer a reliable 10K Type 3 thermistor and the same look and feel as communicating SmartX sensors. The SLA Series sensors provide a low cost option for measuring temperature in a living space application. The SLABXXX Temperature Sensor includes the sensor base and Optimum Black cover. The Optimum Black Cover has an upgraded look and feel while remaining a cost-effective option.
- Ambient Air Temperature For Operation : 32…122 °F (0…50 °C)~~
- Application : HVAC
- Application : Temperature control
- Brand : Schneider Electric
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 44
- Color : Black
- Communication Port Protocol : - - 2 cables
- Connections - Terminals : Screw - 2 AWG 24...AWG 18)
- Depth : 0.9 in (24 mm)
- Device Presentation : Complete product
- Display Type : Without Display
- Final Result for Connectable : Connectable ready
- Final Result for Flywheel performance tracking : Connectable products
- Flame Retardance : UL94-V0
- Global Keywords : Analog
- Global Keywords : HVAC
- Global Keywords : Sensor
- Global Keywords : SLA
- Global warming ; Total life cycle? : 44 kg CO2 eq.
- Height : 4.5 in (115 mm)
- Indivisible Sale Qty : 1
- IP Degree of Protection : IP20
- Location : Living Space
- Material : ABS (acrylonitrile butadiene-styrene)
- Measurement Range : 0...50 °C temperature
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Product Certifications : CE conforming to EN 61000-6-3
- Product Certifications : EAC
- Product Certifications : ICES-003
- Product Certifications : RCM
- Product Name : SmartX Living Space Sensor
- Product Or Component Type : Sensor
- Range : SpaceLogic
- Range Compatibility : EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
- Relative Humidity : 0…95 %
- SCIP Number : 19018439-8feb-4046-94d2-802967081030
- Selection Tools : HVAC Sensors
- Sensor Type : 10 kOhm T3 thermistor
- Standards : FCC Part 15 class B
- Standards : UL 916
- Surface Finish : Glossy
- Take-back : No
- Type Of Measurement : Temperature
- Width : 3.3 in (85 mm)
