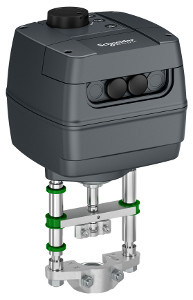

Actuator: (MP2000-SRD): |Actuator Type: Electric |Control Signal: Proportional, Floating |Control Signal Range: 0 to 10 VDC, 0 to 20 mAdc |Loss of Power Type: Spring Return |Power Input Voltage: 24 VAC, 24 VDC |Loss of Power Position: Normally closed |Leads and Connections: Terminal Block |Force: 2000 N |Mechanical Movement: Linear |Auxiliary Switch: 1 SPDT |Additional Features: LED Status Indicator |Protection Rating: IP54 |Product Line: Schneider Electric |Product Range: SpaceLogic Actuator |Product Series: MP2000-SR |Actuator Use: Pressure Independent Control Valves
- [Us] rated supply voltage : 24 V AC/DC~~
- Actuator Product Range : SmartX Actuator
- Actuator Product Series : MP2000-SR
- Actuator Type : Electric
- Additional Features : LED Status Indicator
- analogue input range : 0...10 V DC
- Auxiliary Switch : 1 SPDT
- Brand : Schneider Electric
- By Schneider : Yes
- Conduit Connection : Conduit connector holes
- Control Signal : Floating
- Control Signal : Proportional/Modulating
- Feedback Signal : 0 to 10 VDC
- Feedback Signal : 0 to 20 mAdc
- Feedback Signal : 2 to 10 VDC
- Feedback Signal : 4 to 20 mAdc
- Final Result for Connectable : Connectable ready
- Final Result for Flywheel performance tracking : Connectable products
- Force lbf : 450 lbf
- Force N : 2000 N
- Global Keywords : Actuator
- Global Keywords : Geared
- Global Keywords : Motoric
- Global Keywords : PIBCV
- Global Keywords : PICV
- Humidity : 5…95 % non-condensing
- Insulation Class : Class II
- IP Protection Rating : IP54
- Leads and Connections : Terminal Block
- Loss of Power Type : Spring return
- Manufacturer : Schneider Electric
- Mechanical Movement : Linear
- Override : Automatic reset
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : No
- Position Indicator : Stroke Indicator On Bracket
- Power Consumption Running VA : 15 VA AC
- Product Destination : pressure independent control valves
- Product Or Component Type : Actuator
- Selection Tools : Valve Selection Tool
- Stroke Auto Calibration : Yes
- Stroke Distance : 2.0 in
- Stroke Distance : 50 mm
- Stroke Running Time : 6 s
- Take-back : No
- Temperature Ambient Operating Range : 32…131 °F (0…55 °C)
- Temperature Shipping and Storage Range : -40…158 °F (-40…70 °C)
