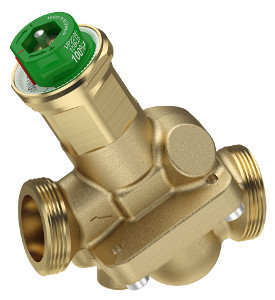

Product pictures shown represent the general type of component listed.The product you select might not exactly match the photo.

VP229E-25BQHNT

$210.49
(No reviews yet) Write a Review
SKU:
VP229E-25BQHNT
Adding to cart… The item has been added
Valve Body (VP229E-25BQHNT): |Body Size: 25 mm (1 in) |Configuration: 2-Way |Type: Pressure Independent |Connection: G external thread |Flow Rate Range: 0.55 to 2.73 m3/h (2.42 to 12.02 gpm) |Control Media: Glycol 15 to 50% and Water |Product Line: Schneider Electric |Product Range: SmartX PIBCV |Product Series: VP229E Product Alert: No PT Port; Not for use with steam.
Accuracy Setting Knob :
5%~~
Application :
Air handling unit
Application :
Fan coil unit
Application :
Radiation panel
Application :
Terminal unit
Body Size :
25 mm (1 in)
By Schneider :
Yes
Carbon footprint (kg CO2 eq, Total Life cycle) :
16
Close-Off Pressure :
1600 kPa
Close-Off Pressure :
232 psi
communication port type :
Without
Configuration :
2-Way
Connection Size :
G 1-1/4A
Connection Type :
G External
Final Result for Connectable :
Not connectable
Final Result for Flywheel performance tracking :
Non Flywheel
Flow Characteristic :
Linear
Flow Rate Maximum (l/s & l/h) :
0.83 l/s
Flow Rate Maximum (m³/h) :
3 m³/h
Flow Rate Maximum GPM :
13.2 gal(US)/min
Flow Rate Minimum (l/s & l/h) :
0.15 l/s
Flow Rate minimum (m³/h) :
0.54 m³/h
Flow Rate minimum GPM :
2.4 gal(US)/min
Flow Rate Nominal (gpm) :
12 gal(US)/min
Flow Rate Nominal (lps) :
0.76 l/s
Flow Rate Nominal (m³/h) :
2.7 m³/h
Global Keywords :
PIBCV
Global Keywords :
PICV
Global Keywords :
VP229
Global Keywords :
VP229E
Global warming ; Total life cycle? :
16 kg CO2 eq.
Indivisible Sale Qty :
1
Manufacturer :
Schneider Electric
Material Body :
CW602N brass
Material Diaphragm :
EPDM
Material Stem :
Stainless Steel
Material Stem Seal :
EPDM
Media Compatibility :
Glycol 25 %
Media Compatibility :
Glycol 30 %
Media Compatibility :
Glycol 50 %
Media Compatibility :
Water
Packaging made with recycled cardboard :
Yes
Packaging without single use plastic :
No
Pipe Size :
25 mm
Pressure Allowable Static :
16 bar, 200 psi up to 150 °F
Pressure Class :
125 ANSI
Pressure Class :
PN16
Pressure Differential Maximum (kPa) :
600 kPa
Pressure Differential Maximum PSI :
87 psi
Pressure Differential Minimum (kPa) :
35 kPa
Pressure Differential Minimum PSI :
5.08 psi
Pressure Fluid Max Delta P Normal Life :
58 psi (399.9 kPa)
Product Or Component Type :
Valve
Rangeability :
1000:1
Seat Leakage :
Port A: Class IV (0.01 %)
Seat Material :
Port A: brass
Selection Tools :
Valve Selection Tool
Stem Movement :
Linear
Take-back :
No
Temperature Range Fluid :
14…248 °F (-10…120 °C)
Valve Product Range :
SpaceLogic
Valve Product Series :
VP229E
Valve Type :
Pressure Independent
