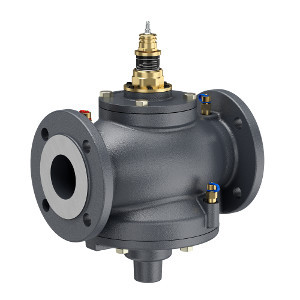

VP220A-65CQS

Accuracy Setting Knob :

5%~~

Application :

Air handling unit

Application :

Fan coil unit

Application :

Radiation panel

Application :

Terminal unit

Body Size :

65 mm (2-1/2 in)

Brand :

Schneider Electric

By Schneider :

Yes

Close-Off Pressure :

1600 kPa

Close-Off Pressure :

232 psi

Configuration :

2-Way

Connection Type :

Flanged

Final Result for Connectable :

Not connectable

Final Result for Flywheel performance tracking :

Non Flywheel

Flow Characteristic :

Linear

Flow Rate Maximum (l/s & l/h) :

5.6 l/s

Flow Rate Maximum (m³/h) :

20 m³/h

Flow Rate Maximum GPM :

85 gal(US)/min

Flow Rate Minimum (l/s & l/h) :

2.20 l/s

Flow Rate minimum (m³/h) :

8 m³/h

Flow Rate minimum GPM :

34 gal(US)/min

Flow Rate Nominal (gpm) :

85 gal(US)/min

Flow Rate Nominal (lps) :

5.6 l/s

Flow Rate Nominal (m³/h) :

20 m³/h

Manufacturer :

Schneider Electric

Material Body :

Grey cast iron GG-25

Material Diaphragm :

EPDM

Material Stem :

Stainless Steel

Material Stem Seal :

EPDM

Media Compatibility :

Glycol 25 %

Media Compatibility :

Glycol 30 %

Media Compatibility :

Glycol 50 %

Media Compatibility :

Water

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

Pipe Size :

65 mm

Pressure Allowable Static :

200 psi up to 150 °F

Pressure Class :

125 ANSI

Pressure Differential Maximum (kPa) :

600 kPa

Pressure Differential Maximum PSI :

87 psi

Pressure Differential Minimum (kPa) :

30 kPa

Pressure Differential Minimum PSI :

4.35 psi

Pressure Fluid Max Delta P Normal Life :

58 psi (399.9 kPa)

Product Alert :

Not for use with steam

Product Or Component Type :

Valve

Rangeability :

1000:1

Seat Leakage :

Port A: 0.05% of Qnom

Seat Material :

Port A: stainless steel AISI 303

Selection Tools :

Valve Selection Tool

Stem Movement :

Linear

Take-back :

No

Temperature Range Fluid :

14…248 °F (-10…120 °C)

Valve Product Range :

SpaceLogic

Valve Product Series :

VP220A

Valve Type :

Pressure Independent

PDF :

https://iportal2.schneider-electric.com/Contents/docs/F-28002.PDF||~~PDF
