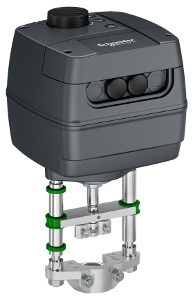

MP2000-NSR

[Us] rated supply voltage :

24 V AC~~

Actuator Product Range :

SmartX Actuator

Actuator Type :

Electric

Additional Features :

LED Status Indicator

analogue input range :

0...10 V DC

Auxiliary Switch :

2 SPDT

Brand :

Schneider Electric

By Schneider :

Yes

Conduit Connection :

Conduit connector holes

Control Signal :

Floating

Control Signal :

Proportional/Modulating

Feedback Signal :

0 to 10 VDC

Feedback Signal :

0 to 20 mAdc

Feedback Signal :

2 to 10 VDC

Feedback Signal :

4 to 20 mAdc

Final Result for Connectable :

Connectable ready

Final Result for Flywheel performance tracking :

Connectable products

Humidity :

5…95 % non-condensing

Indivisible Sale Qty :

1

Insulation Class :

Class III

IP Protection Rating :

IP54

Leads and Connections :

Terminal Block

Loss of Power Type :

Non-Spring Return

Manufacturer :

Schneider Electric

Mechanical Movement :

Linear

Override :

Automatic reset

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

Position Indicator :

Stroke Indicator On Bracket

Power Consumption Running VA :

15 VA AC

Product Destination :

pressure independent control valves

Product Or Component Type :

Actuator

Selection Tools :

Valve Selection Tool

Stroke Auto Calibration :

Yes

Stroke Distance :

2.0 in

Stroke Distance :

50 mm

Stroke Running Time :

6 s

Take-back :

No

Temperature Ambient Operating Range :

32…131 °F (0…55 °C)

Temperature Shipping and Storage Range :

-40…158 °F (-40…70 °C)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/F-27947.PDF
