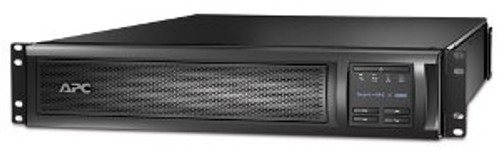

SMX3000RMLV2UNC

acoustic level :

55 dBA~~

additional specification :

Extended run

Battery Charge Power (Watts) :

245 W rated

battery curve :

C

Battery Life :

3…5 year(s)

battery option :

SMX120RMBP2U 1 2214 VAh

battery option :

SMX120RMBP2U 10 15498 VAh

battery option :

SMX120RMBP2U 2 3690 VAh

battery option :

SMX120RMBP2U 3 5166 VAh

battery option :

SMX120RMBP2U 4 6642 VAh

battery option :

SMX120RMBP2U 6 9594 VAh

battery option :

SMX120RMBP2U 8 12546 VAh

Battery power in VAH :

738 VAh runtime

Battery Slots Empty :

0

Battery Type :

Lead-Acid battery

Brand :

APC Brand

Cable Length :

8 ft (2.4 m)

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

2745

Channel status :

Distribution

Color :

Black

Configurators/Selectors :

Computer rooms

Configurators/Selectors :

NetShelter

Configurators/Selectors :

PowerStruXure Type A

Configurators/Selectors :

UPS Selector

Configurators/Selectors :

UPS Selector Business Power

Configurators/Selectors :

Wiring closets

Control panel :

LED status display with On Line : On Battery : Replace Battery and Overload indicators

Control panel :

Multi-function LCD status and control console

curve equation :

Efficiency

curve fixed loss :

0.0069

curve load maximum :

100 %

curve load minimum :

1 %

curve proportional loss :

0

curve square loss :

0.0136

curve X-axis maximum :

100 %

curve X-axis minimum :

0 %

curve X-axis title :

Load

curve X-axis units :

Percentage

curve Y-axis maximum :

100 %

curve Y-axis minimum :

50 %

curve Y-axis title :

Efficiency

curve Y-axis units :

Percentage

Depth :

26.26 in (66.7 cm)

Efficiency at full load :

70...153 V

Emergency Power Off (EPO) :

Yes

Equipment protection policy :

Lifetime : $150000

Extendable Run Time :

1

Filtering :

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m

Final Result for Connectable :

Connectable ready

Final Result for Flywheel performance tracking :

Connectable products

Form name :

UPS

free slots :

0

Global Keywords :

3000VA sine wave UPS

Global Keywords :

APC Smart-UPS X

Global Keywords :

AVR UPS

Global Keywords :

Battery backup

Global Keywords :

EcoStruxure IT

Global Keywords :

Extendable runtime UPS

Global Keywords :

Network monitoring SMX UPS

Global Keywords :

Rack tower convertible 2U UPS

Global Keywords :

Schneider Electric line interactive Smart UPS

Global Keywords :

Switchable outlet group UPS

Global Keywords :

Uninterruptible power supply

Global Keywords :

Ups

Global Keywords :

User selectable low voltage UPS

Global warming ; Total life cycle? :

2 745 kg CO2 eq.

graph display :

1

harmonic distortion :

Less than 5%

Heat Dissipation :

276 Btu/h

Height :

3.35 in (8.5 cm)

Included Battery Modules :

0

Input Connection Type :

NEMA L5-30P

Input Frequency :

50/60 Hz +/- 3 Hz auto-sensing

Kw Rating :

2700 W

Lead time :

Usually Ships within 2 Weeks

Liquid Electrolyte Value :

0

Main Input Voltage :

120 V

Manufacturer :

American Power Conversion Corp. (APC)

Max Configurable Power (Watts) :

2700 W

Maximum configurable power in VA :

2880 VA

Maximum Output Current :

15 A

Mounting Location :

Front

Mounting Mode :

Rack-mounted

Mounting Preference :

Lower

Net Weight :

84.77 lb(US) (38.45 kg)

Number Of Cables :

1

Number of power module :

0

Number of power module filled slots :

0

Number of power module free slots :

0

number of rack unit :

2U

Number of tare power :

41 W

OEM :

APC

Operating Altitude :

0...10000 ft

Optimized Energy Efficiency :

Energy efficient product

Other Input Voltages :

100 V

Other Input Voltages :

110 V

Other Input Voltages :

127 V

Other Output Voltages :

100 V

Other Output Voltages :

110 V

Other Output Voltages :

127 V

output connection type :

1 NEMA L5-30R

output connection type :

3 NEMA 5-15R

output connection type :

3 NEMA 5-20R

Output frequency :

50/60 Hz +/- 3 Hz sync to mains

Output Voltage :

120 V

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

Pallet layers :

4

Pallet unit layers :

2

performance multiplier :

1

Pre-Installed SmartSlotâ„¢ Cards :

Network management card 3 with environmental monitoring

Presentation :

Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Prod Type :

UPS

Product Certifications :

BSMI

Product Certifications :

CSA

Product Certifications :

NOM

Product Certifications :

TÜV

Product Certifications :

VCCI Class A

Product Or Component Type :

Uninterruptible power supply (UPS)

Provided Equipment :

CD with software

Provided Equipment :

Documentation CD

Provided Equipment :

Installation guide

Provided Equipment :

Rack Mounting brackets

Provided Equipment :

Rack mounting hardware

Provided Equipment :

Rack Mounting support rails

Provided Equipment :

Removable support feet

Provided Equipment :

Smart UPS signalling RS-232 cable

Provided Equipment :

USB cable

Provided Equipment :

Web/SNMP Management Card

Rated Power In Va :

2880 VA

RBC Quantity :

1

redundant :

No

Relative Humidity :

0…95 %

Removable battery :

User replaceable

show note OP temperature :

No

size UPS version :

Internetworking

size UPS version :

Server

size UPS version :

Telecom

Storage Altitude :

0…50000 ft (0…15240 m)

Storage Relative Humidity :

0…95 %

Surge energy rating :

540 J

Take-back :

Yes

Temperature Ambient Operating Range :

32…104 °F (0…40 °C)

Temperature Shipping and Storage Range :

5…113 °F (-15…45 °C)

Topology :

Line Interactive

Transfer Time :

2-4 ms

Transfer Time :

4ms typical : 8ms maximum

two post mountable :

0

Typical recharge time :

3 h

UNSPSC Classification v19 :

39121011

UNSPSC Classification v23 :

39121011

UPS size :

S

USB compatible :

Yes

value multiplier :

1

Warranty :

3 years repair or replace (excluding battery) and 2 years for battery, optional extended warranties available, optional on-site warranties available

Waveform Type :

Sine wave

Width :

17.01 in (43.2 cm)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/UPS-SCON-8JXPUH_R3_EN.PDF
