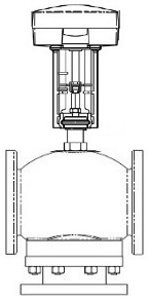

VU-8303-650-5-12

[Us]ratedsupplyvoltage :

20...29VDC, 24VAC/DC

analogueinputrange :

0...10VDC, 4...20mAwith500Ohmresistor

BodyPattern :

Straightway

BodySize :

65mm(2-1/2in)

Brand :

SchneiderElectric

BySchneider :

Yes

Californiaproposition65 :

WARNING:Thisproductcanexposeyoutochemicalsincludinglead,whichisknowntotheStateofCaliforniatocausecancerandbirthdefectsorotherreproductiveharm-www.P65Warnings.ca.gov

Configuration :

3-WayMixing/Diverting

ConnectionType :

Flanged

FinalResultforConnectable :

Connectableready

FinalResultforFlywheelperformancetracking :

Connectableready

FlowCharacteristic :

Linear

GlobalKeywords :

Globevalveactuator, Globevalveassembly, IP54ElectricActuator, IP54globevalveactuator, NEMA2ElectricActuator, NEMA2globevalveActuator, Non-SpringReturnoutdooractuator

IndivisibleSaleQty :

1

MaterialBody :

Castiron

MaterialPlug :

ForgedBrass

MaterialTrim :

Brass

MediaCompatibility :

Glycol25%, Glycol30%, Glycol50%, Water

PackingMaterial :

Spring-LoadedPTFE/EPDM

PipeSize :

2-1/2in

PressureAllowableStatic :

200psigupto150\xc2\xb0Fdecreasingto169psigat281\xc2\xb0F

PressureClass :

125ANSI

ProductOrComponentType :

Valve-actuatorassembly

Rangeability :

Greaterthan100:1

SeatLeakage :

PortA:ClassIII(0.1%)

SeatMaterial :

PortA:brass

StemFlowAction :

StemUp,MixingClosedAtoAB,DivertingClosedABtoA

StemMovement :

Linear

StrokeDistance :

1in

TemperatureRangeFluid :

19\xe2\x80\xa6280\xc2\xb0F(-7\xe2\x80\xa6138\xc2\xb0C)

ValveProductRange :

BalancedPlugTechnology

ValveProductSeries :

VB-8300

ValveType :

Globe

PDF :

https://iportal2.schneider-electric.com/Contents/docs/F-27685.PDF

PDF :

https://iportal2.schneider-electric.com/Contents/docs/F-27682.PDF

PDF :

https://iportal2.schneider-electric.com/Contents/docs/F-27855.PDF

PDF :

https://iportal2.schneider-electric.com/Contents/docs/F-27683.PDF
