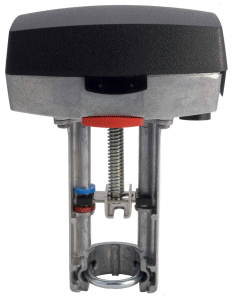

VU-9313-650-5-13

[Us]ratedsupplyvoltage :

20...29VDC, 24VAC/DC

analogueinputrange :

0...10VDC, 4...20mAwith500Ohmresistor

BodyPattern :

Straightway

BodySize :

80mm(3in)

Brand :

SchneiderElectric

BySchneider :

Yes

Californiaproposition65 :

WARNING:Thisproductcanexposeyoutochemicalsincludinglead,whichisknowntotheStateofCaliforniatocausecancerandbirthdefectsorotherreproductiveharm-www.P65Warnings.ca.gov

Configuration :

3-WayMixing

ConnectionType :

Flanged

FinalResultforConnectable :

Connectableready

FinalResultforFlywheelperformancetracking :

Connectableready

FlowCharacteristic :

Linear

FlowCoefficient :

101cv, 87.35kvs

GlobalKeywords :

Globevalveactuator, Globevalveassembly, IP54ElectricActuator, IP54globevalveactuator, NEMA2ElectricActuator, NEMA2globevalveActuator, Non-SpringReturnoutdooractuator

IndivisibleSaleQty :

1

MaterialBody :

Castiron

MaterialPlug :

Brass

MaterialTrim :

Brass

PackingMaterial :

Spring-LoadedPTFE/EPDM

PipeSize :

3in

PressureAllowableStatic :

200psigupto150\xc2\xb0Fdecreasingto169psigat281\xc2\xb0F

PressureClass :

125ANSI

ProductOrComponentType :

Valve-actuatorassembly

Rangeability :

Greaterthan500:1

SeatLeakage :

PortA:ClassIII(0.1%)

SeatMaterial :

PortA:bronze

StemFlowAction :

StemUp,MixingClosedAtoAB

StemMovement :

Linear

StrokeDistance :

7/8in

TemperatureRangeFluid :

39\xe2\x80\xa6300\xc2\xb0F(4\xe2\x80\xa6149\xc2\xb0C)

ValveProductSeries :

VB-9300

ValveType :

Globe

PDF :

https://iportal2.schneider-electric.com/Contents/docs/F-27685.PDF

PDF :

https://iportal2.schneider-electric.com/Contents/docs/F-27682.PDF

PDF :

https://iportal2.schneider-electric.com/Contents/docs/F-27855.PDF

PDF :

https://iportal2.schneider-electric.com/Contents/docs/F-27683.PDF
