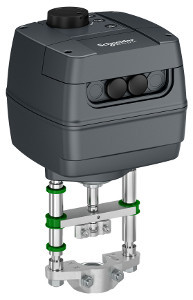

Actuator: (MP500C-SRD-W): |Actuator Type: Electric |Control Signal: Proportional, Floating |Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc |Loss of Power Type: Spring Return |Power Input Voltage: 24 VAC, 24 VDC |Leads and Connections: No leads |Force: 500 N |Mechanical Movement: Linear |Auxiliary Switch: Available as accessory |Additional Features: Field selectable floating input signal travel time |Protection Rating: IP65 |Product Line: Schneider Electric |Product Range: Spacelogic Actuator |Product Series: MP500C-SR |Actuator Use: Dampers, Electronic Pressure Independent Characterized Control Valves Product Alert: Spring return stem down
- [Us] rated supply voltage : 24 V AC/DC~~
- Actuator Product Range : SpaceLogic
- Actuator Product Series : MP500C-SR
- Actuator Type : Electric
- analogue input range : 0...10 V DC
- Auxiliary Switch : 2 SPDT
- Brand : Schneider Electric
- By Schneider : Yes
- Conduit Connection : Conduit connector holes
- Control Signal : Floating
- Control Signal : Proportional/Modulating
- Feedback Signal : 0 to 5 VDC
- Feedback Signal : 2 to 10 VDC
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Force lbf : 113 lbf
- Force N : 500 N
- Global Keywords : IP65 PIC valve actuator
- Global Keywords : NEMA 4 PIC valve actuator
- Global Keywords : Outdoor protected PIBCV actuator
- Global Keywords : PIBCV calce actuator
- Global Keywords : PIC valve actuator
- Global Keywords : Spring Return PIBCV outdoor actuator
- Global Keywords : Weather proof PIC valve actuator
- Humidity : 0…90 % RH, non-condensing
- Indivisible Sale Qty : 1
- IP Protection Rating : IP65
- Leads and Connections : Terminal Block
- Loss of Power Type : Spring return
- Mechanical Movement : Linear
- Motor Type : Brushless DC motor
- Override : Automatic reset
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : No
- Power Consumption Running VA : 30 VA AC
- Power Input Transformer Sizing VA : 50 VA
- Product Destination : pressure independent control valves
- Product Or Component Type : Actuator
- Selection Tools : Valve Selection Tool
- Stroke Auto Calibration : Yes
- Stroke Running Time : 30 s
- Take-back : No
- Temperature Ambient Operating Range : 14…122 °F (-10…50 °C)
- Temperature Shipping and Storage Range : -13…149 °F (-25…65 °C)
