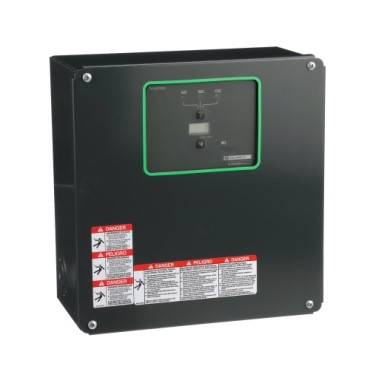

Surgelogic™ Type EMA Series surge protective devices deliver specification grade performance for service entrance or critical branch panel applications. These multi-phase surge suppression systems provide transient suppression, noise filtration in a durable modular package. They provide better performance with a diagnostic interface with push to test switches, red and green status LEDs, module status LEDs per mode, dry contacts, audible alarm with disable switch, and a surge counter. It has 10 year product warranty.
- Product : Surge protection device
- Range : Surgelogic
- Device Short Name : EMA
- Voltage Rating : 480Y/277 V AC
- MCOV : 320 V
- SCCR : 200 kA
- Surge Current : 240 kA
- Nominal Discharge Current : 20 kA
- Number of Phases : 3 phase
- Wiring Configuration : 4-wire
- Connection : Lugs AWG 10...AWG 2 copper 35.40 lbf.in (4 N.m)
- Local Signalling : Status LED green per phase normal operation, Status LED red per phase fault
- Provided Equipment : Alarm enable/disable switch, Surge counter, Dry contacts
- Cable length : 19.02 in (483 mm)
- Device Mounting : Surface
- Height : 11.10 in (282 mm)
- Width : 9.98 in (253.5 mm)
- Depth : 5.31 in (135 mm)
- Ambient Operating : 149 °F (65 °C)
- Enclosure Rating : NEMA 1
- Enclosure Material : Gray painted sheet steel
- Standards : CSA C22.2 No 8, UL 1449:ed. 4, UL 1283:ed. 5
- Category : US1DE1B08464
- Discount Schedule : DE1B
- GTIN : 785901991489
- Returnability : Yes
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 6.02 in (15.3 cm)
- Package 1 Width : 11.73 in (29.8 cm)
- Package 1 Length : 12.91 in (32.8 cm)
- Package 1 Weight : 16.80 lb(US) (7.620 kg)
