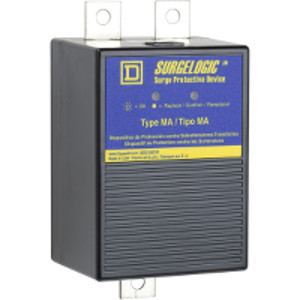

MA4IMA12

[Uc] maximum continuous operating voltage :

320 V~~

[Ue] rated operational voltage :

480Y/277 V AC

Accessory / Separate Part Category :

Replacement part

Brand :

Square D

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

2782

Connections - Terminals :

Terminals

Depth :

2.7 in (68.3 mm)

Device Short Name :

IMA

Enclosure Material :

Black Plastic

Final Result for Connectable :

Not connectable

Final Result for Flywheel performance tracking :

Non Flywheel

Global Keywords :

protection

Global Keywords :

120kA

Global Keywords :

MA

Global Keywords :

Module

Global Keywords :

SPD type 2

Global Keywords :

Surge

Global Keywords :

Surgelogic

Global warming ; Total life cycle? :

2 782 kg CO2 eq.

Height :

6.3 in (158.8 mm)

Local Signalling :

Status LED green normal operation

Manufacturer :

Schneider Electric

Mounting Support :

Panel mounting

NEMA Protection Rating :

NEMA 2

Nominal Discharge Current :

20 kA

Packaging made with recycled cardboard :

No

Packaging without single use plastic :

No

Phase :

3 phase

Product Or Component Type :

Surge protection module

Provided Equipment :

Alarm enable/disable switch

short-circuit protection :

200 kA

Standards :

ANSI/IEEE C62.41

Standards :

ANSI/IEEE C62.45

Standards :

CSA C22.2 No 8:1986

Standards :

NEC 285

Standards :

UL 1283:ed. 5

Standards :

UL 1449:ed. 4

surge current :

120 kA per phase

Take-back :

No

Temperature Ambient Operating Range :

149 °F (65 °C)

UNSPSC Classification v19 :

39121112

UNSPSC Classification v23 :

39121112

Width :

3.3 in (82.8 mm)

wiring configuration :

4-wire

PDF :

https://iportal2.schneider-electric.com/Contents/docs/SQD-SURGELOGIC.PDF
