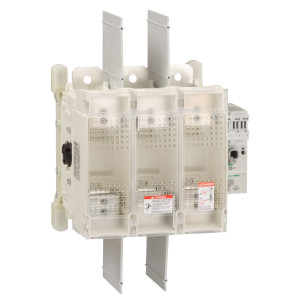

GS2QU3N

[Ie] rated operational current :

400 A

[Ith] conventional free air thermal current :

400 A (at 104 °F (40 °C))

[Ui] rated insulation voltage :

800 V

[Uimp] rated impulse withstand voltage :

8 kV

Application :

Protection

Brand :

Schneider Electric

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Connections - Terminals :

Power circuit lugs-ring terminals 0.02…0.5 in² (13.3…304 mm²)

Contacts Type And Composition :

3 NO

Depth :

7.09 in (180 mm)

Device Short Name :

GS2QU

Electrical Durability :

6000 cycles

Final Result for Flywheel performance tracking :

Non Flywheel

fuse size :

J

fuse type :

UL

Global Keywords :

50/60Hz

Global Keywords :

External handle

Global Keywords :

Fuse size j

Global Keywords :

Switch discoonector fuse

Global Keywords :

TeSys GS fuse

Global Keywords :

UL fuse type

Height :

9.4 in (240 mm)

IP Degree of Protection :

IP20 IEC 60529 with terminal cover)

Manufacturer :

Square D

Mechanical Durability :

10000 cycles

Mounting Support :

Plate

Network Frequency :

50/60 Hz

Network Type :

AC

Network Type :

DC

Number of Units in Package 2 :

4

Package 2 Height :

29.53 in (75.000 cm)

Package 2 Length :

47.24 in (120.000 cm)

Package 2 Weight :

86.986 lb(US) (39.456 kg)

Package 2 width :

31.50 in (80.000 cm)

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

Product Name :

TeSys GS

Product Or Component Type :

Switch-disconnector-fuse

protected poles description :

3t

Range :

TeSys

rated operational power in W :

220 kW 400 V

rated operational power in W :

220 kW 500 V

rated operational power in W :

220 kW 690 V

REACh free of SVHC :

Yes

short-circuit withstand :

200 kA

Standards :

CSA C22.2 No 4

Standards :

UL98

Take-back :

No

Temperature Ambient Operating Range :

-4…158 °F (-20…70 °C)

Temperature Shipping and Storage Range :

-40…176 °F (-40…80 °C)

Tightening Torque :

Power circuit 500.07 lbf.in (56.5 N.m)

Toxic heavy metal free :

Yes

Type Of Network :

3P

type of operating handle :

External frontal

Unit Type of Package 2 :

P12

UNSPSC Classification v19 :

39122233

UNSPSC Classification v23 :

39122233

Volume of Package 2 :

720000.000 cm3

Width :

10.2 in (259 mm)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/GS2QU3N_DATA%20SHEET.PDF
