Schneider Electric

[Icm] rated short-circuit making capacity :

2.1 kA 400 V at Ipeak~~

[Icw] rated short-time withstand current :

756 A 400 V 1 s

[Ie] rated operational current :

41.5 A AC-23 Ue: 400 V

[Ith] conventional free air thermal current :

63 A

[Ithe] conventional enclosed thermal current :

50 A

[Ue] rated operational voltage :

690 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage :

8 kV

base dimension :

60 x 60 mm

Brand :

Schneider Electric

breaking capacity :

500 A 400 V AC-21A)

breaking capacity :

500 A 400 V AC-22A)

breaking capacity :

500 A 400 V AC-23A)

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

166

Circularity Profile :

No need of specific recycling operations

Connections - Terminals :

Power circuit screw clamp terminals 0.02 inÂ² (16 mmÂ²) flexible - with cable end

Connections - Terminals :

Power circuit screw clamp terminals 0.04 inÂ² (25 mmÂ²) solid

Contacts Type And Composition :

3 NO

Device Composition :

Handle

Device Composition :

Switch

Device Short Name :

VCF

Electrical Durability :

30000 cycles AC-21

Electrical Durability :

30000 cycles DC-1...5

Final Result for Flywheel performance tracking :

Non Flywheel

fire resistance :

1760 Â°F (960 Â°C) IEC 60695-2-1

Fixing Mode :

By 4 screws handle

Global Keywords :

4 screws fixing

Global Keywords :

Padlockable

Global Keywords :

Red handle and yellow front plate

Global warming ; Total life cycle? :

166 kg CO2 eq.

handle colour :

Red

handle front plate colour :

Yellow

Height :

3.3 in (83 mm)

intermittent duty class :

30

IP Degree of Protection :

IP20 conforming to IEC 60529

IP Degree of Protection :

IP65

making capacity :

630 A 400 V AC-21A

making capacity :

630 A 400 V AC-22A

making capacity :

630 A 400 V AC-23A

Manufacturer :

Schneider Electric

Marking :

0 - 1

Mechanical Durability :

30000 cycles

Mechanical Robustness :

Shocks 11 ms 30 Gn) IEC 60068-2-27

Mechanical Robustness :

Vibrations 10...150 Hz 1 gn) IEC 60068-2-6

Mounting Support :

Handle door

Mounting Support :

Switch door

Net Weight :

1.23 lb(US) (0.56 kg)

Network Type :

AC

Network Type :

DC

Number of Units in Package 2 :

12

Number of Units in Package 3 :

192

Override :

Rotary handle

Package 2 GTIN :

43389110165997

Package 2 Height :

5.91 in (15.000 cm)

Package 2 Length :

15.75 in (40.000 cm)

Package 2 Weight :

9.749 lb(US) (4.422 kg)

Package 2 width :

11.81 in (30.000 cm)

Package 3 Height :

29.53 in (75.000 cm)

Package 3 Length :

31.50 in (80.000 cm)

Package 3 Weight :

178.707 lb(US) (81.060 kg)

Package 3 width :

23.62 in (60.000 cm)

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

performance level :

High performance

Product Certifications :

CCC

Product Certifications :

CSA

Product Certifications :

GL

Product Certifications :

UKCA

Product Certifications :

UL

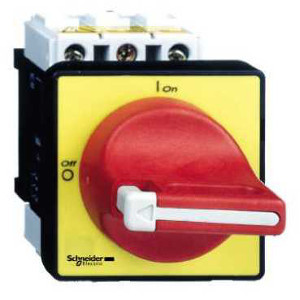

Product Name :

TeSys VARIO

Product Or Component Type :

Emergency stop switch disconnector

Protective Treatment :

TC

PVC free :

Yes

Range :

TeSys

rated conditional short-circuit current :

10 kA 400 V 63 A aM

rated conditional short-circuit current :

10 kA 400 V 63 A gG
