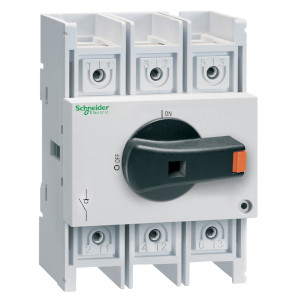

TeSys VLS Body switch disconnector, 3 poles, 125 A, on DIN rail
- [Icm] rated short-circuit making capacity : 3550 A 690 V~~
- [Icw] rated short-time withstand current : 2500 A 690 V 1 s
- [Ie] rated operational current : 100 A AC-23A Ue: 500 V
- [Ie] rated operational current : 100 A Ue: 600 V UL98
- [Ie] rated operational current : 125 A AC-21A Ue: 400 V
- [Ie] rated operational current : 125 A AC-21A Ue: 500 V
- [Ie] rated operational current : 125 A AC-21A Ue: 690 V
- [Ie] rated operational current : 125 A AC-22A Ue: 400 V
- [Ie] rated operational current : 125 A AC-22A Ue: 500 V
- [Ie] rated operational current : 125 A AC-22A Ue: 690 V
- [Ie] rated operational current : 125 A AC-23A Ue: 400 V
- [Ie] rated operational current : 47 A AC-23A Ue: 690 V
- [Ith] conventional free air thermal current : 125 A (at 131 °F (55 °C))
- [Ithe] conventional enclosed thermal current : 100 A
- [Ue] rated operational voltage : 600 V AC 50/60 Hz UL 508
- [Ue] rated operational voltage : 690 V AC 50/60 Hz
- [Uimp] rated impulse withstand voltage : 8 kV
- AWG Gauge : AWG 12...AWG 1 copper
- Brand : Schneider Electric
- breaking capacity : 1000 A 690 V AC-23A)
- breaking capacity : 187.5 A 690 V AC-21A)
- breaking capacity : 375 A 690 V AC-22A)
- By Schneider : Yes
- Color : Gray
- Connections - Terminals : Power circuit screw clamp terminals 0.08 in² (50 mm²) solid
- Connections - Terminals : Power circuit screw clamp terminals 0.1 in² (70 mm²) flexible - without cable end
- Contacts Type And Composition : 3 NO
- Depth : 3.9 in (100 mm)
- Device Composition : Handle
- Device Composition : Switch
- Device Short Name : VLS3P
- Electrical Durability : 30000 cycles AC-21
- Final Result for Flywheel performance tracking : Non Flywheel
- fire resistance : 1760 °F (960 °C) IEC 60695-2-11
- Fixing Mode : By clips back
- Global Keywords : 125A disconnect switch
- Global Keywords : 3 pole disconnect switch
- Global Keywords : DIN rail mount disconnect switch
- Global Keywords : Disconnect switch
- Global Keywords : Low voltage
- Global Keywords : VLS discconect switch
- handle colour : Black
- handle front plate colour : Grey
- Height : 3.0 in (75 mm)
- intermittent duty class : Class 120 - 60 %
- IP Degree of Protection : IP20 conforming to IEC 60529
- making capacity : 1250 A 690 V AC-23A
- making capacity : 187.5 A 690 V AC-21A
- making capacity : 375 A 690 V AC-22A
- Manufacturer : Schneider Electric
- Marking : 0 - 1
- Maximum Horse Power Rating : 10 hp 240 V AC
- Maximum Horse Power Rating : 30 hp 200/208 V AC
- Maximum Horse Power Rating : 30 hp 240 V AC
- Maximum Horse Power Rating : 60 hp 480 V AC
- Maximum Horse Power Rating : 60 hp 600 V AC
- Maximum Horse Power Rating : 7.5 hp 120 V AC
- Mechanical Durability : 30000 cycles
- Mechanical Robustness : Shocks 11 ms Ea 15 gn) IEC 60068-2-27
- Mechanical Robustness : Vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6
- Mounting Support : Back DIN rail
- Net Weight : 0.805 lb(US) (0.365 kg)
- Network Frequency : 50/60 Hz
- Network Type : AC
- Number of Units in Package 2 : 27
- Override : Rotary handle
- Package 2 GTIN : 43606481156509
- Package 2 Height : 11.81 in (30.000 cm)
- Package 2 Length : 15.75 in (40.000 cm)
- Package 2 Weight : 25.331 lb(US) (11.490 kg)
- Package 2 width : 11.81 in (30.000 cm)
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : Yes
- performance level : High performance
- Product Certifications : CULus
- Product Certifications : GL
- Product Compatibility : Circuit-breaker 250 A maximum: 100 kA at 480 V AC
- Product Compatibility : Fuse CC 100 A maximum: 50 kA at 600 V AC
- Product Compatibility : Fuse CC 200 A maximum: 100 kA at 480 V AC
- Product Compatibility : Fuse J 100 A maximum: 50 kA at 600 V AC
- Product Compatibility : Fuse J 200 A maximum: 100 kA at 480 V AC
- Product Compatibility : Fuse T 100 A maximum: 50 kA at 600 V AC
- Product Compatibility : Fuse T 200 A maximum: 100 kA at 480 V AC
- Product Name : TeSys VARIO LS
- Product Or Component Type : Switch body
- Range : TeSys
- rated conditional short-circuit current : 50 kA 400 V 125 A gG
- rated operational power in W : 45 kW 500 V AC-23A)
- rated operational power in W : 45 kW 690 V AC-23A)
- rated operational power in W : 55 kW 400 V AC-23A)
- REACh free of SVHC : Yes
- rotary handle mounting style : Direct
- rotary handle padlocking : 1 padlock 0.2 in (4 mm)
- Standards : CSA C22.2 No 4
- Standards : IEC 60947-3
- Standards : UL98
- suitability for isolation : Yes
- Sustainable packaging : Yes
- Take-back : No
- Temperature Ambient Operating Range : -13…131 °F (-25…55 °C)
- Tightening Torque : Power circuit 44.3…53.1 lbf.in (5…6 N.m) screw clamp terminals
- Toxic heavy metal free : Yes
- Type Of Network : 3P
- Unit Type of Package 2 : S03
- UNSPSC Classification v19 : 39122233
- UNSPSC Classification v23 : 39122233
- Volume of Package 2 : 36000.000 cm3
- Width : 2.8 in (70 mm)
