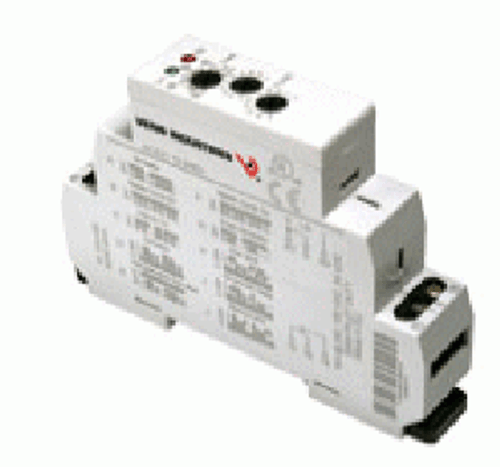

time delay relay, Legacy, DPDT, 100 ms to 10 days, DIN mounting support, 15A, 12...240V AC DC

[Ie] rated operational current :

15 A at 240 V AC-1

[Uimp] rated impulse withstand voltage :

4 kV 1.2/50 µs IEC 60664-1

[Us] rated supply voltage :

12...240 V AC/DC 50...60 Hz

AWG Gauge :

AWG 14

Brand :

Schneider Electric

breaking capacity :

4000 VA AC-1

By Schneider :

Yes

Contacts Material :

AgNi

Control Type :

With adjustment knob front

Depth :

2.5 in (64 mm)

dielectric strength :

1000 V between open contacts

dielectric strength :

4000 V between input and output

Electrical Durability :

30000 cycles

Electromagnetic Compatibility :

Conducted RF disturbances 10 V, 0.15...80 MHz level 3 conforming to IEC 61000-4-6

Electromagnetic Compatibility :

Electrostatic discharge 4 kV level 2 conforming to IEC 61000-4-2

Electromagnetic Compatibility :

Electrostatic discharge 8 kV level 2 conforming to IEC 61000-4-2

Electromagnetic Compatibility :

Fast transient bursts 2 kV level 3 conforming to IEC 61000-4-4

Electromagnetic Compatibility :

Immunity to microbreaks and voltage drops 100 %, 20 ms conforming to IEC 61000-4-11

Electromagnetic Compatibility :

Immunity to microbreaks and voltage drops 30 %, 500 ms conforming to IEC 61000-4-11

Electromagnetic Compatibility :

Radiated radio-frequency electromagnetic field immunity test 10 V/m level 3 conforming to IEC 61000-4-3

Electromagnetic Compatibility :

Surge immunity test 1 kV level 3 conforming to IEC 61000-4-5

Electromagnetic Compatibility :

Surge immunity test 2 kV level 3 conforming to IEC 61000-4-5

Final Result for Flywheel performance tracking :

Non Flywheel

Global Keywords :

10 ms to 10 days

Global Keywords :

12 to 240 VAC/VDC

Global Keywords :

DPDT

Global Keywords :

IEC timer

Global Keywords :

Low voltage

Global Keywords :

Modular timer

Global Keywords :

Multifuction timer

Global Keywords :

Time delay relay

Global Keywords :

Timer

Global Keywords :

Timer relay

Height :

3.5 in (90 mm)

Input Voltage :

10 V

IP Degree of Protection :

IP20 IEC 60529 terminals)

IP Degree of Protection :

IP40 IEC 60529 front panel)

Local Signalling :

1 LED green

Local Signalling :

1 LED red

Manufacturer :

Square D

Maximum Power Consumption In W :

1.5 W 24 V

maximum switching voltage :

240 V

Mechanical Durability :

15000000 cycles

Minimum Pulse Duration :

25 ms

minimum switching current :

100 mA 5 V

Mounting Support :

35 mm DIN rail conforming to IEC 60715

Net Weight :

3.0 oz (85 g)

nominal output current :

15 A

Number of Units in Package 2 :

10

Number of Units in Package 3 :

240

Overvoltage Category :

III conforming to IEC 60664-1

Package 2 GTIN :

13606480282031

Package 2 Height :

3.10 in (7.874 cm)

Package 2 Length :

8.80 in (22.352 cm)

Package 2 Weight :

34.879 oz (988.831 g)

Package 2 width :

3.90 in (9.906 cm)

Package 3 Height :

13.00 in (33.020 cm)

Package 3 Length :

23.80 in (60.452 cm)

Package 3 Weight :

53.511 lb(US) (24.272 kg)

Package 3 width :

10.60 in (26.924 cm)

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

Yes

Power Consumption In Va :

2.5 VA 240 V

Product Certifications :

CE

Product Certifications :

RoHS

Product Certifications :

UL

Product Certifications :

WEEE

Product Or Component Type :

Time delay relay

REACh free of SVHC :

Yes

Relative Humidity :

95 %

Repeat Accuracy :

+/- 0.2 %

reset time :

150 ms maximum

Standards :

IEC 61812-1

Switch Function :

DPDT

Take-back :

No

Temperature Ambient Operating Range :

-4…131 °F (-20…55 °C)

Temperature Drift :

0.01 %/°C

Temperature Shipping and Storage Range :

-22…158 °F (-30…70 °C)

Tightening Torque :

3.5 lbf.in (0.4 N.m)

time delay range :

0.1...1 h

time delay range :

0.1...1 min

time delay range :

1...10 d

time delay range :

1...10 h

time delay range :

1...10 min

time delay range :

1...10 s

time delay range :

100 ms...1 s

time delay range :

72 min...12 h

time delay type :

Multifunction

Toxic heavy metal free :

Yes

Unit Type of Package 2 :

BB1

Unit Type of Package 3 :

CAR

UNSPSC Classification v19 :

39122329

UNSPSC Classification v23 :

39122329

Voltage Range :

0.85...1.15 Un

Volume of Package 2 :

1743.453 cm3

Volume of Package 3 :

53743.671 cm3

Width :

0.7 in (17.6 mm)~~
