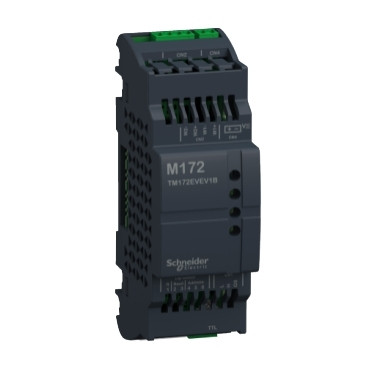

This driver belongs to Modicon M171/M172 range of controllers. It is an electronic expansion valve drivers for single valve, bipolar, and communicate with controllers via CAN expansion bus. It figures one CAN port and one removable 3-way screw connector. It is supplied with screw terminal blocks. its power consumption is 18W at 24V DC. It weighs 0.089kg. It measures 36mm wide, 113mm high, 60mm deep. It is designed to control electronic expansion valves used in various types of refrigeration systems. It is certified CE, UL, CSA, EAC, RoHS China. It is compatible with Modicon M172 Optimized and Modicon M172 Performance logic controllers.
- Range of Product : Modicon M171/M172
- Product or Component Type : Expansion unit
- Number of port : 1 CAN port - 1 removable 3-way screw connector
- [Us] rated supply voltage : 24 V +/- 10 % AC, 20...38 V DC
- Power consumption in W : 18 W 24 V DC
- Maximum power consumption in VA : 23 VA 24 V AC
- Display Type : Without Display
- Overvoltage category : I
- Mounting Support : DIN rail
- Width : 1.42 in (36 mm)
- Height : 4.45 in (113 mm)
- Depth : 2.36 in (60 mm)
- Net Weight : 0.20 lb(US) (0.089 kg)
- Product Certifications : CE, CSA, EAC, RCM, cURus
- Ambient air temperature for operation : -4…149 °F (-20…65 °C)
- Ambient Air Temperature for Storage : -22…158 °F (-30…70 °C)
- Relative humidity : 5…95 % non-condensing
- IP degree of protection : IP20
- Pollution degree : 2
- Category : US1PC1222537
- Discount Schedule : PC12
- GTIN : 3606481893291
- Returnability : Yes
- Country of origin : IT
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 5.31 in (13.500 cm)
- Package 1 Width : 3.62 in (9.200 cm)
- Package 1 Length : 5.04 in (12.800 cm)
- Package 1 Weight : 6.14 oz (174.000 g)
- Unit Type of Package 2 : S02
- Number of Units in Package 2 : 8
- Package 2 Height : 5.91 in (15.000 cm)
- Package 2 Width : 11.81 in (30.000 cm)
- Package 2 Length : 15.75 in (40.000 cm)
- Package 2 Weight : 3.53 lb(US) (1.600 kg)
