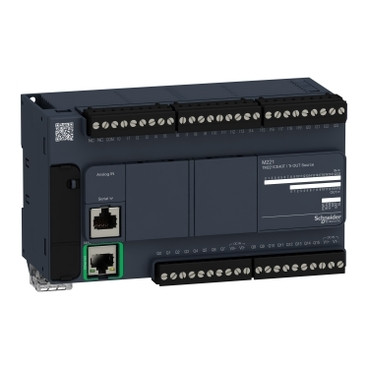

This TM221 controller is part of the Modicon M221 Logic controller range. It has 40 logic I/O and it is supplied with 24V DC. It is supplied with removable screw terminal blocks for connecting the I/O, a removable screw terminal block for connecting the power supply, a button cell backup battery BR2032 and a cable for connecting the analog inputs. M221 logic controllers have three types of integrated communication port, Ethernet, RS 232/RS 485 serial link and USB mini-B programming port. It enables the control of simple machines. The capacity of M221 logic controllers can be enhanced with the Modicon TM3 expansion module offer.
- immunity to microbreaks : 10 ms
- Ambient Air Temperature for Storage : -13…158 °F (-25…70 °C)
- IP degree of protection : IP20 with protective cover in place
- Pollution degree : <= 2
- Operating altitude : 0...6561.68 ft (0...2000 m)
- Storage altitude : 0.00…9842.52 ft (0…3000 m)
- Shock resistance : 147 m/s² 11 ms
- Category : 22533-M2XX PLC & ACCESSORIES
- Discount Schedule : MSX
- GTIN : 3606480648809
- Returnability : Yes
- Country of origin : TW
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 4.39 in (11.139 cm)
- Package 1 Width : 5.59 in (14.201 cm)
- Package 1 Length : 8.29 in (21.045 cm)
- Package 1 Weight : 26.81 oz (760.0 g)
- Unit Type of Package 2 : CAR
- Number of Units in Package 2 : 12
- Package 2 Height : 11.54 in (29.3 cm)
- Package 2 Width : 15.43 in (39.2 cm)
- Package 2 Length : 22.40 in (56.9 cm)
- Package 2 Weight : 22.51 lb(US) (10.211 kg) |PDF1
