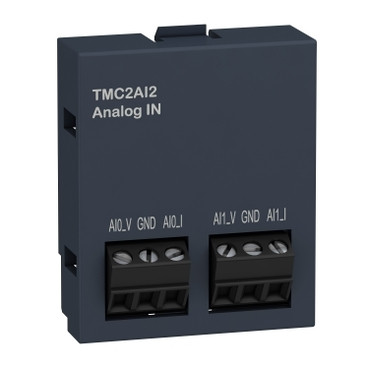

This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This analogue input cartridge provides 2 inputs with 12bit input resolution. This product requires minimal installation and offers tremendous versatility. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is no insulation between analogue input and internal logic. It is furnished with screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This cartridge is compatible with Modicon M221C PLC. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
- Range of Product : Modicon M221
- Product or Component Type : Analogue input cartridge
- Product Compatibility : Modicon M221C
- analogue input number : 2
- Analogue input type : current 4...20 mA, current 0...20 mA, voltage 0...10 V
- Analogue input resolution : 12 bits
- Conversion time : 20 ms
- Sampling duration : 10 ms
- Absolute accuracy error : +/- 0.1 % of full scale at 77 °F (25 °C), +/- 1 % of full scale
- Temperature Drift : +/- 0.02 %FS/°C
- Repeat accuracy : +/- 0.5 %FS
- Non-linearity : +/- 0.01 %FS
- Cross talk : <= 1 LSB
- Type of Cable : Twisted shielded pairs cable
- Electrical connection : 3 x 1.5 mm² 2 screw terminal blocks pitch 3.81 mm for inputs
- Maximum cable distance between devices : Twisted shielded pairs cable <98.43 ft (30 m) input
- Height : 1.61 in (41 mm)
- Depth : 0.59 in (15 mm)
- Width : 1.38 in (35 mm)
- Net Weight : 0.03 lb(US) (0.015 kg)
- Permissible continuous overload : 13 V voltage, 40 mA current
- Input impedance : <= 250 Ohm current, >= 1 MOhm voltage
- Immunity to microbreaks : 10 ms
- Category : US10MSX22533
- Discount Schedule : 0MSX
- GTIN : 3606480649080
- Returnability : Yes
- Country of origin : JP
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 1.41 in (3.594 cm)
- Package 1 Width : 1.85 in (4.692 cm)
- Package 1 Length : 2.78 in (7.059 cm)
- Package 1 Weight : 1.06 oz (30.0 g)
- Unit Type of Package 2 : S02
- Number of Units in Package 2 : 75
- Package 2 Height : 5.91 in (15 cm)
- Package 2 Width : 11.81 in (30 cm)
- Package 2 Length : 15.75 in (40 cm)
- Package 2 Weight : 7.30 lb(US) (3.31 kg)
- Unit Type of Package 3 : P12
- Number of Units in Package 3 : 2400
- Package 3 Height : 29.53 in (75 cm)
- Package 3 Width : 47.24 in (120 cm)
- Package 3 Length : 31.50 in (80 cm)
- Package 3 Weight : 244.71 lb(US) (111 kg)
